BACKWARD UNIVERSAL GAGE
DRAWING LIST

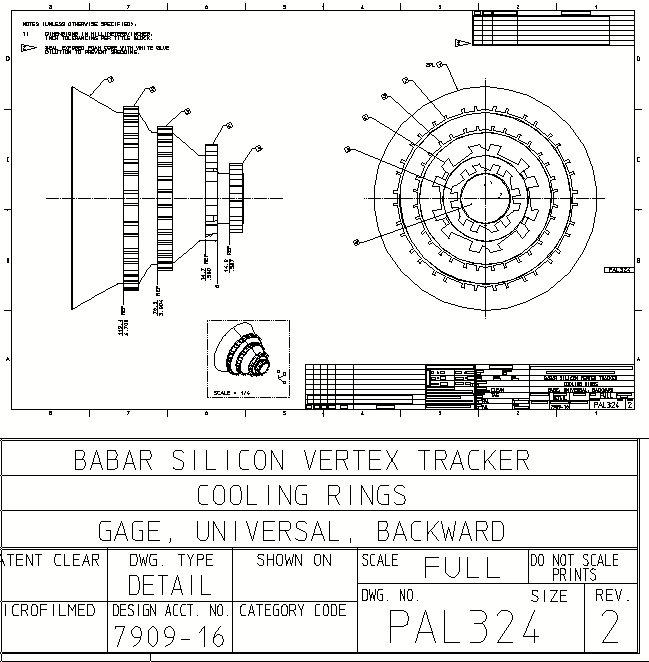

PAL324  GAGE, UNIVERSAL, BACKWARD --> gif dxf
  B0903  SUPPORT CONES LAYOUT --> gif dxf
  PAL322  RING 5B, DUMMY --> gif dxf

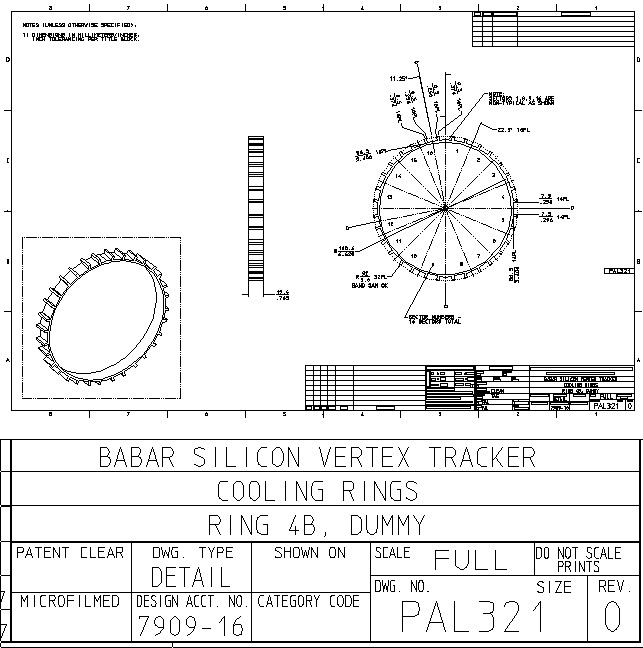

  PAL321  RING 4B, DUMMY --> gif dxf

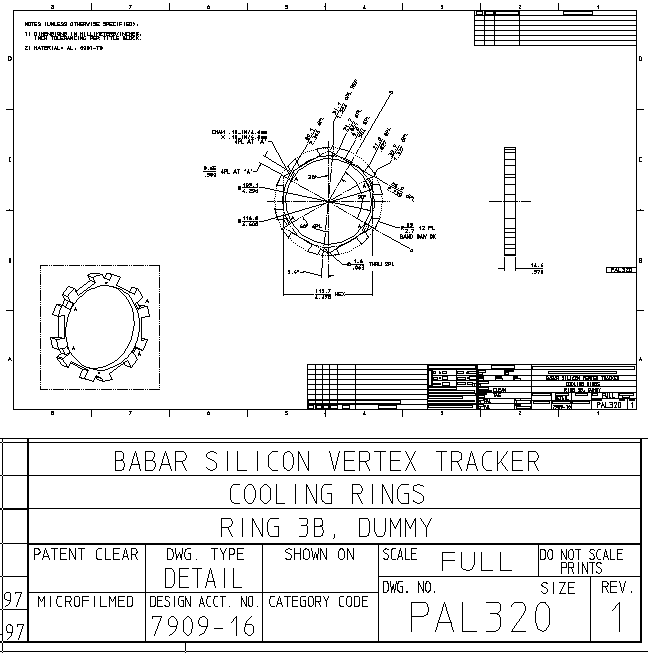

  PAL320  RING 3B, DUMMY --> gif dxf

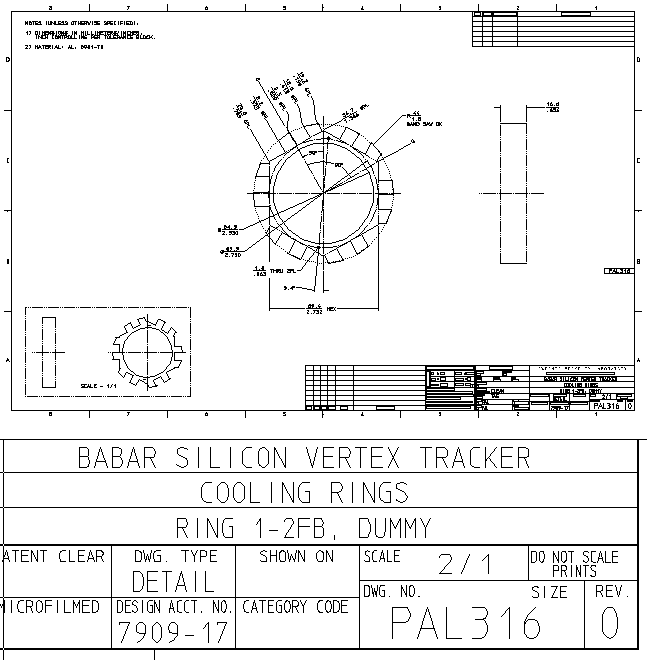

  PAL316  RING 12FB, DUMMY --> gif dxf
NOTES:
  • Indented text lines of drawing lists report to next higher outdented line.
  • Drawings may be listed more than once.
  • Drawing files are the most current revision.
    •
