Space Frame Drawing List

SPACE FRAME
DRAWING LIST

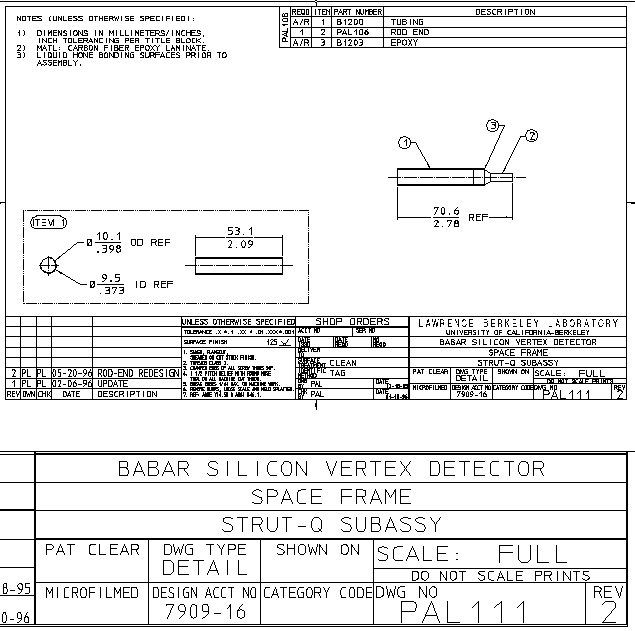

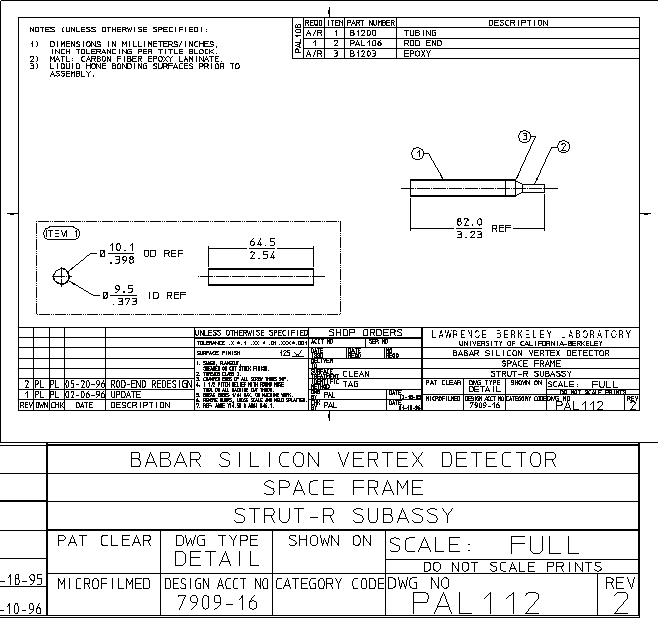

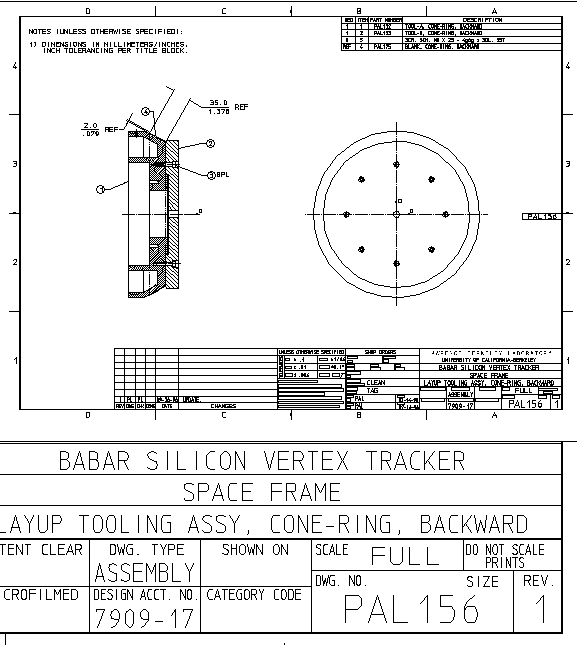

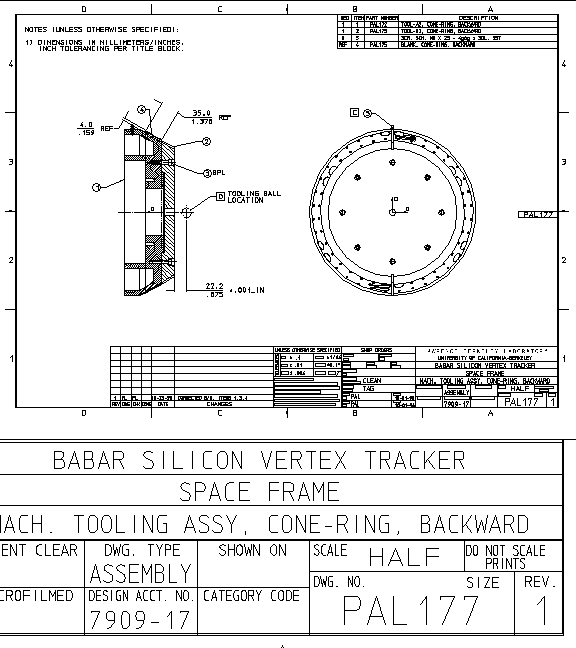

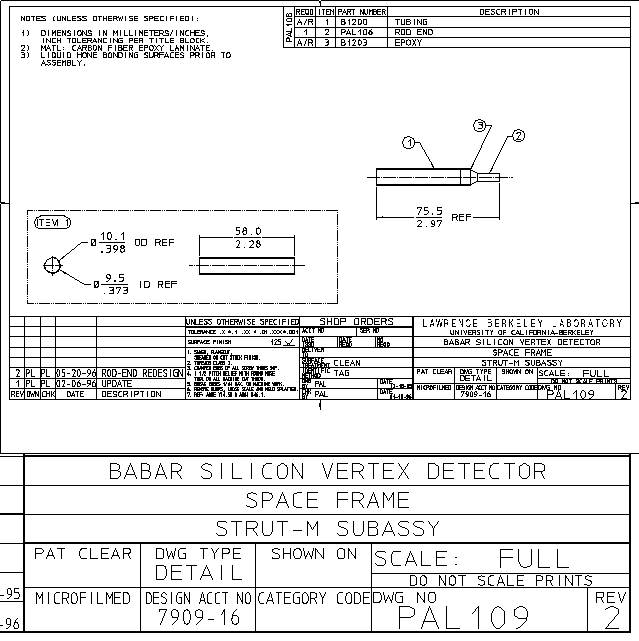

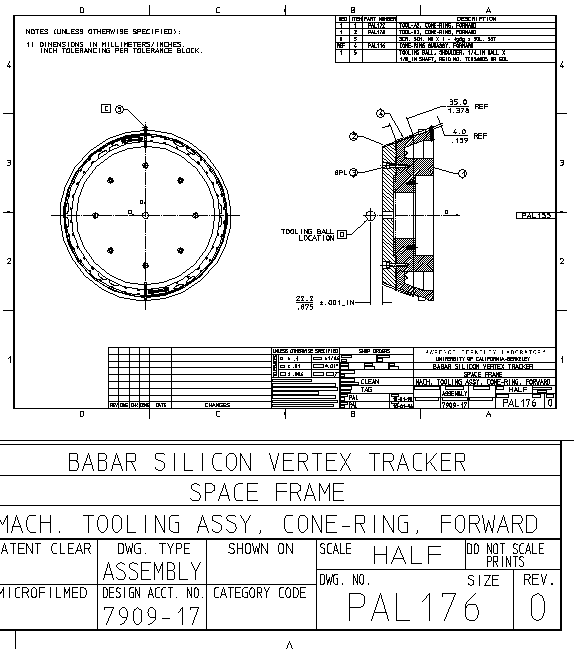

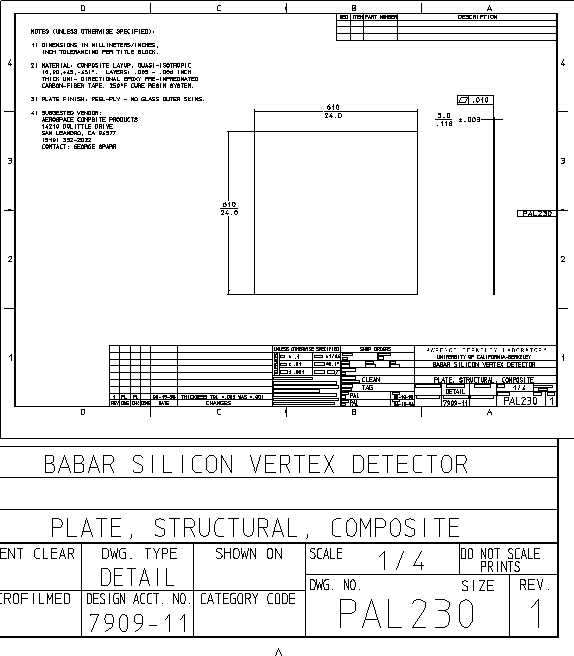

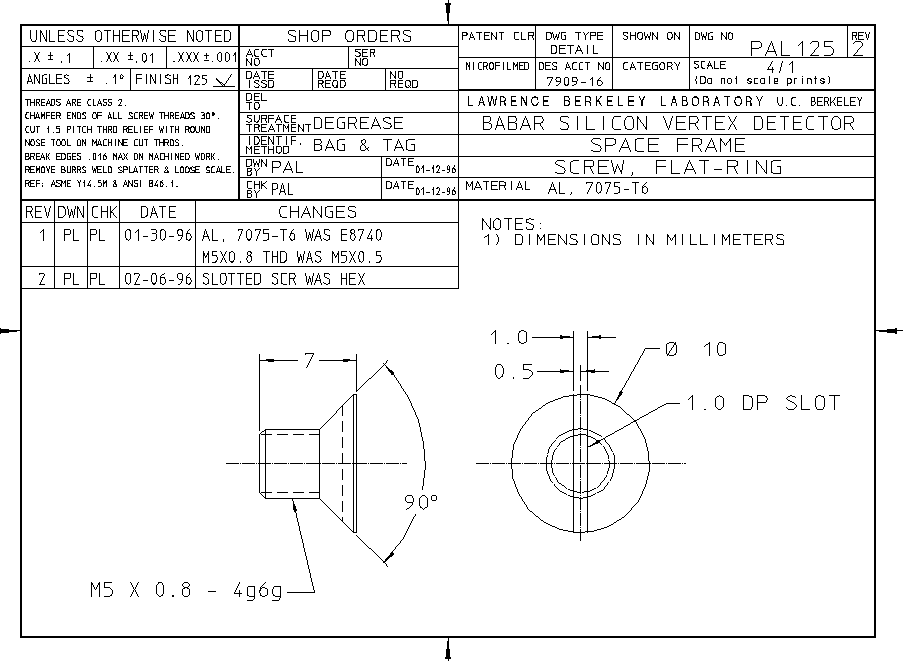

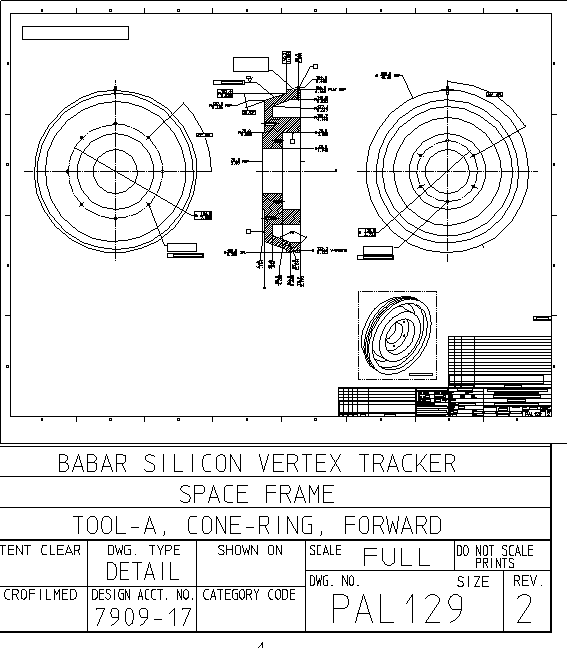

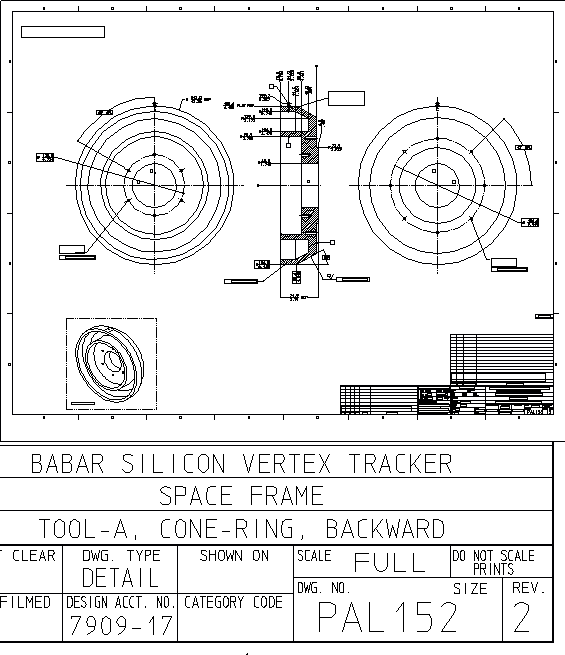

PAL157 DRAWING TREE, SPACE FRAME --> gif dxf PAL122 SPACE FRAME ASSY --> gif dxf pdf PAL106 ROD END --> gif dxf PAL108 STRUT-L SUBASSY --> gif dxf PAL106 ROD END --> gif dxf PAL109 STRUT-M SUBASSY --> gif dxf PAL106 ROD END --> gif dxf PAL110 STRUT-P SUBASSY --> gif dxf PAL106 ROD END --> gif dxf PAL111 STRUT-Q SUBASSY --> gif dxf PAL106 ROD END --> gif dxf PAL112 STRUT-R SUBASSY --> gif dxf PAL106 ROD END --> gif dxf PAL113 CONE-RING SUBASSY, BACKWARD --> gif dxf PAL175 BLANK, CONE-RING, BACKWARD --> gif dxf PAL156 LAYUP TOOLING ASSY, CONE-RING, BACKWARD --> gif dxf PAL152 TOOL-A, CONE-RING, BACKWARD --> gif dxf PAL153 TOOL-B, CONE-RING, BACKWARD --> gif dxf PAL177 MACH. TOOLING ASSY, CONE-RING, BACKWARD --> gif dxf PAL173 TOOL-A2, CONE-RING, BACKWARD --> gif dxf PAL152 TOOL-A, CONE-RING, BACKWARD --> gif dxf PAL179 TOOL-B2, CONE-RING, BACKWARD --> gif dxf PAL153 TOOL-B, CONE-RING, BACKWARD --> gif dxf PAL116 CONE-RING SUBASSY, FORWARD --> gif dxf PAL174 BLANK, CONE-RING, FORWARD --> gif dxf PAL155 LAYUP TOOLING ASSY, CONE-RING, FORWARD --> gif dxf PAL129 TOOL-A, CONE-RING, FORWARD --> gif dxf PAL130 TOOL-B, CONE-RING, FORWARD --> gif dxf PAL176 MACH. TOOLING ASSY, CONE-RING, FORWARD --> gif dxf PAL172 TOOL-A2, CONE-RING, FORWARD --> gif dxf PAL129 TOOL-A, CONE-RING, FORWARD --> gif dxf PAL178 TOOL-B2, CONE-RING, FORWARD --> gif dxf PAL130 TOOL-B, CONE-RING, FORWARD --> gif dxf PAL125 SCREW, FLAT-RING --> gif dxf PAL126 NUT, FLAT-RING --> gif dxf PAL127 SPANNER, NUT, FLAT-RING --> gif dxf PAL154 TOOLING ASSEMBLY, SPACE FRAME --> gif dxf PAL148 MANDREL --> gif dxf PAL149 HUB --> gif dxf PAL150 FIXTURE PLATE, FLAT-RING, FORWARD --> gif dxf PAL151 FIXTURE PLATE, FLAT-RING, BACKWARD --> gif dxf PAL172 TOOL A-2, CONE-RING, FORWARD --> gif dxf PAL173 TOOL A-2, CONE-RING, BACKWARD --> gif dxf PAL161 FLAT-RING HALF, FORWARD, INNER --> gif dxf PAL168 BLANK, FLAT-RING HALF, FORWARD --> gif dxf PAL165 PLATE, 6mm, STRUCTURAL, COMPOSITE --> gif dxf PAL230 PLATE, STRUCTURAL, COMPOSITE --> gif dxf PAL162 FLAT-RING HALF, FORWARD, OUTER --> gif dxf PAL168 BLANK, FLAT-RING HALF, FORWARD --> gif dxf PAL165 PLATE, 6mm, STRUCTURAL, COMPOSITE --> gif dxf PAL230 PLATE, STRUCTURAL, COMPOSITE --> gif dxf PAL163 FLAT-RING HALF, BACKWARD, INNER --> gif dxf PAL169 BLANK, FLAT-RING HALF, BACKWARD --> gif dxf PAL165 PLATE, 6mm, STRUCTURAL, COMPOSITE --> gif dxf PAL230 PLATE, STRUCTURAL, COMPOSITE --> gif dxf PAL164 FLAT-RING HALF, BACKWARD, OUTER --> gif dxf PAL169 BLANK, FLAT-RING HALF, BACKWARD --> gif dxf PAL165 PLATE, 6mm, STRUCTURAL, COMPOSITE --> gif dxf PAL230 PLATE, STRUCTURAL, COMPOSITE --> gif dxf

NOTES:

Indented text lines of drawing lists report to next higher outdented line.

Drawings may be listed more than once.

Drawing files are the most current revision.

PDF files available for items highlighted in orange. These require Adobe Acrobat Reader to view.
