RING 5B
ASSEMBLY FIXTURE
DRAWING LIST

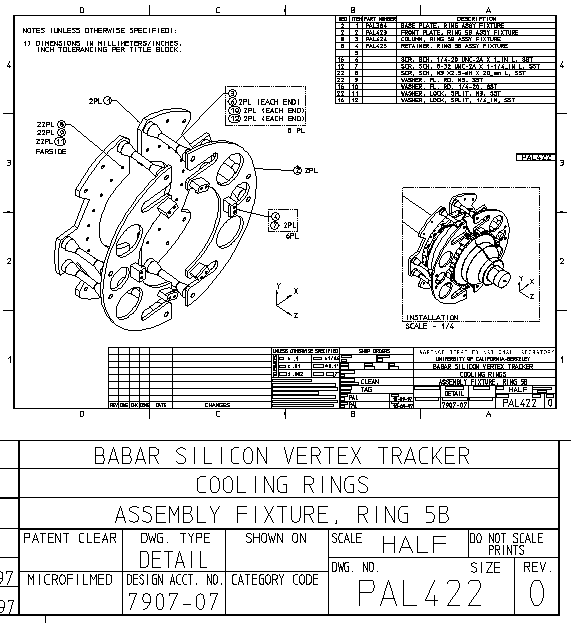

PAL422  ASSEMBLY FIXTURE, RING 5B --> gif dxf
  PAL384  BASE PLATE, RING ASSY FIXTURE --> gif dxf

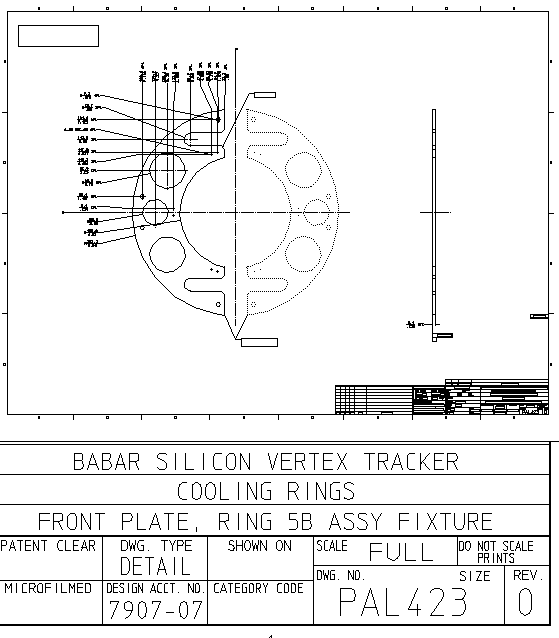

  PAL423  FRONT PLATE, RING 5B ASSY FIXTURE --> gif dxf

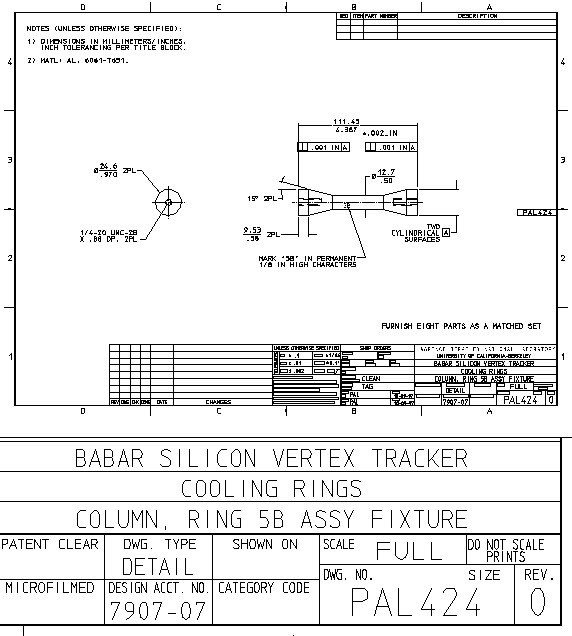

  PAL424  COLUMN, RING 5B ASSY FIXTURE --> gif dxf

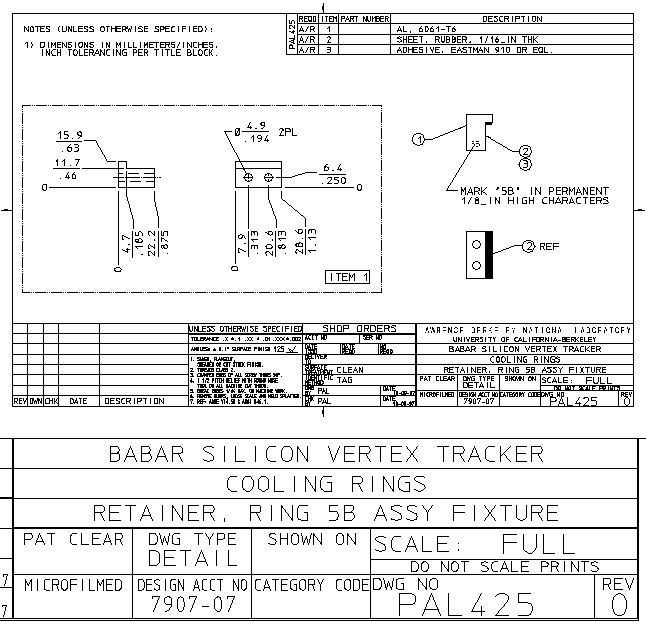

  PAL425  RETAINER, RING 5B ASSY FIXTURE --> gif dxf
NOTES:
  • Indented text lines of drawing lists report to next higher outdented line.
  • Drawings may be listed more than once.
  • Drawing files are the most current revision.
    •
