RING 5B
DRAWING LIST

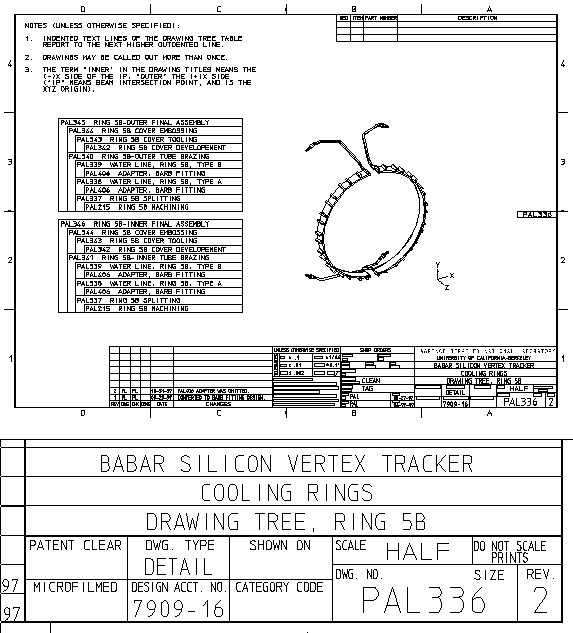

PAL336  DRAWING TREE, RING 5B --> gif dxf

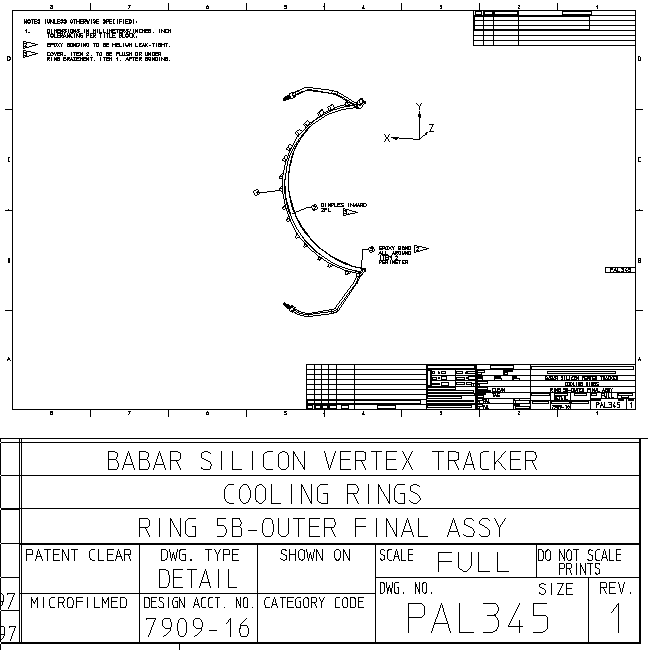

  PAL345  RING 5B-OUTER FINAL ASSEMBLY --> gif dxf

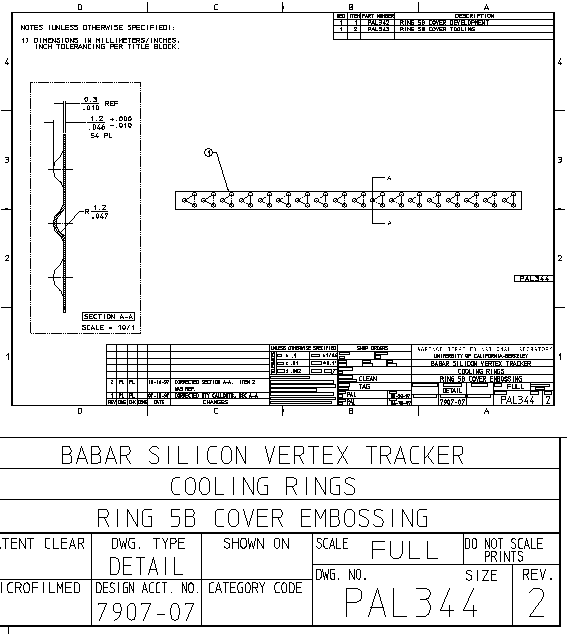

    PAL344  RING 5B COVER EMBOSSING --> gif dxf
      PAL343  RING 5B COVER TOOLING --> gif dxf

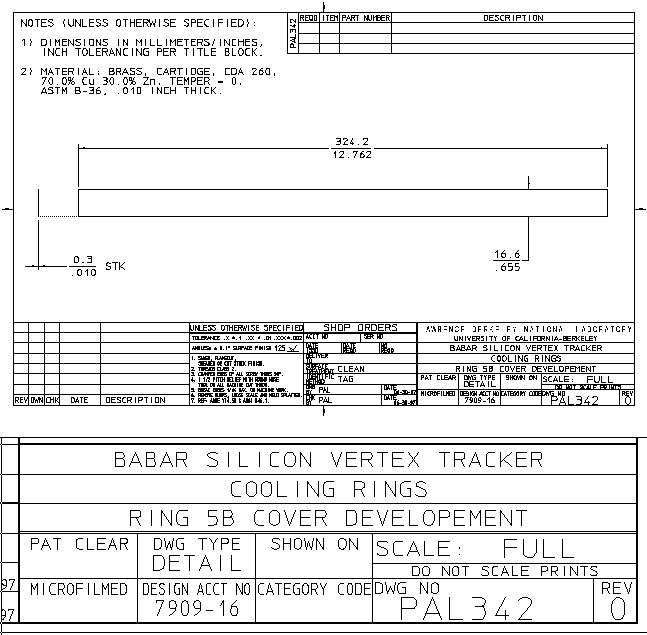

        PAL342  RING 5B COVER DEVELOPEMENT --> gif dxf

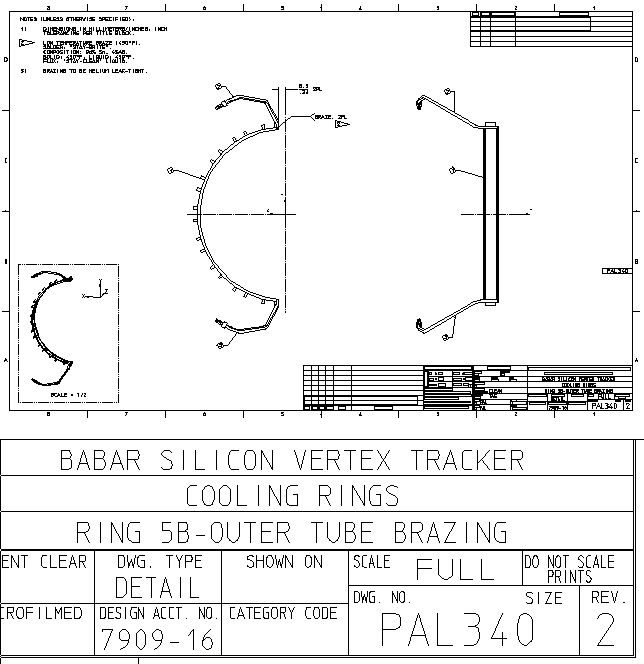

    PAL340  RING 5B-OUTER TUBE BRAZING --> gif dxf
      PAL339  WATER LINE, RING 5B, TYPE B --> gif dxf
        PAL406  ADAPTER, BARB FITTING --> gif dxf
      PAL338  WATER LINE, RING 5B, TYPE A --> gif dxf
        PAL406  ADAPTER, BARB FITTING --> gif dxf

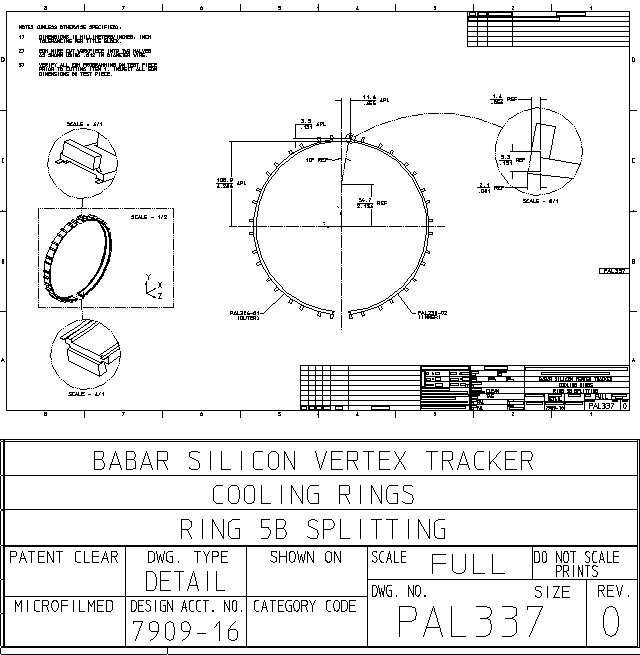

      PAL337  RING 5B SPLITTING --> gif dxf
        PAL215  RING 5B MACHINING --> gif dxf

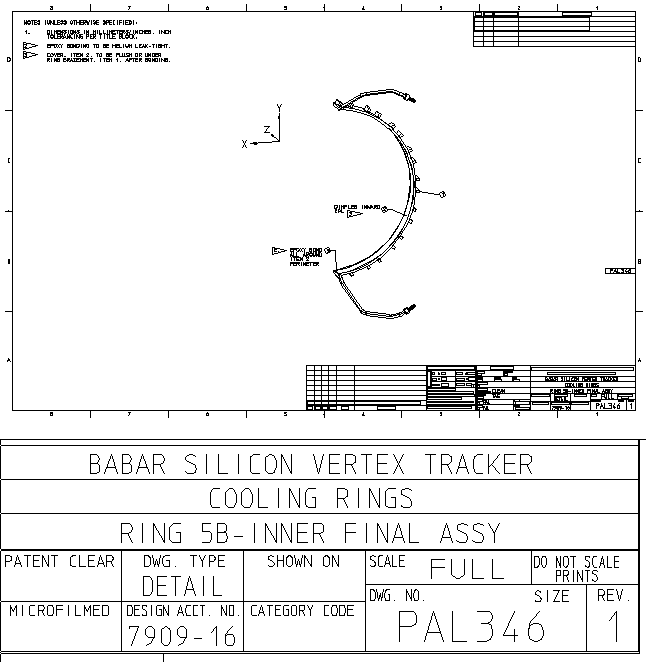

  PAL346  RING 5B-INNER FINAL ASSEMBLY --> gif dxf
    PAL344  RING 5B COVER EMBOSSING --> gif dxf
      PAL343  RING 5B COVER TOOLING --> gif dxf
        PAL342  RING 5B COVER DEVELOPEMENT --> gif dxf

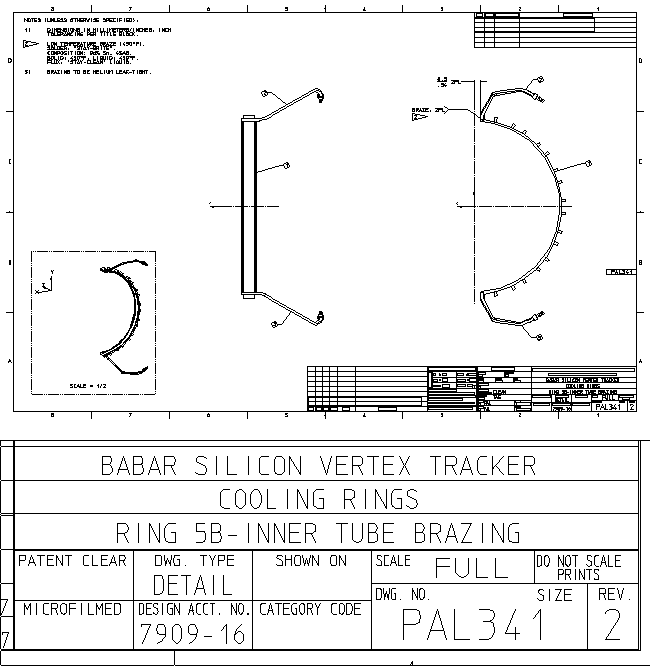

    PAL341  RING 5B-INNER TUBE BRAZING --> gif dxf
      PAL339  WATER LINE, RING 5B, TYPE B --> gif dxf
        PAL406  ADAPTER, BARB FITTING --> gif dxf
      PAL338  WATER LINE, RING 5B, TYPE A --> gif dxf
        PAL406  ADAPTER, BARB FITTING --> gif dxf
      PAL337  RING 5B SPLITTING --> gif dxf
        PAL215  RING 5B MACHINING --> gif dxf
NOTES:
  • Indented text lines of drawing lists report to next higher outdented line.
  • Drawings may be listed more than once.
  • Drawing files are the most current revision.
    •
