RING 4F
ASSEMBLY FIXTURE
DRAWING LIST

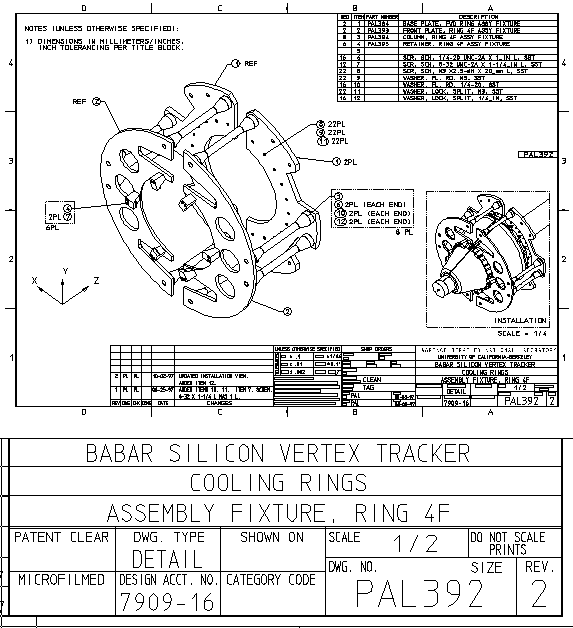

PAL392  ASSEMBLY FIXTURE, RING 4F --> gif dxf
  PAL384  BASE PLATE, FWD RING ASSY FIXTURE --> gif dxf

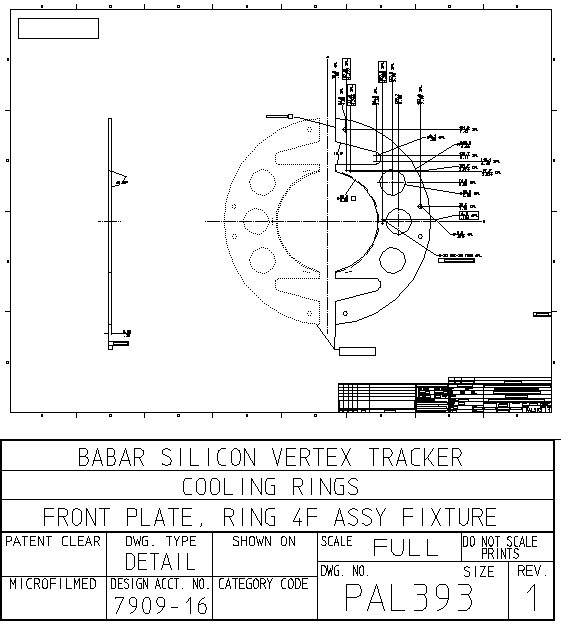

  PAL393  FRONT PLATE, RING 4F ASSY FIXTURE --> gif dxf

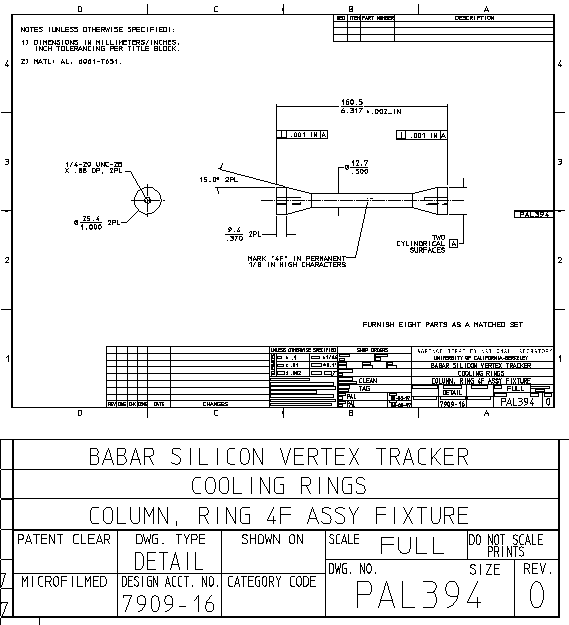

  PAL394  COLUMN, RING 4F ASSY FIXTURE --> gif dxf

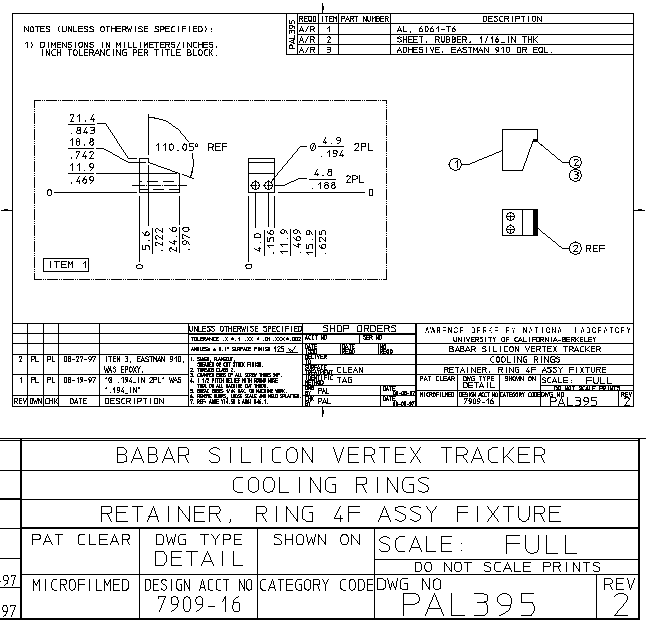

  PAL395  RETAINER, RING 4F ASSY FIXTURE --> gif dxf
NOTES:
  • Indented text lines of drawing lists report to next higher outdented line.
  • Drawings may be listed more than once.
  • Drawing files are the most current revision.
    •
