RING 4F
DRAWING LIST

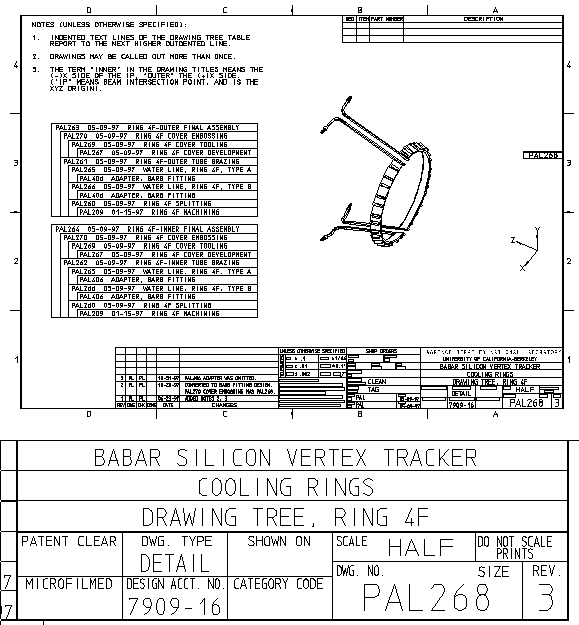

PAL268  DRAWING TREE, RING 4F --> gif dxf

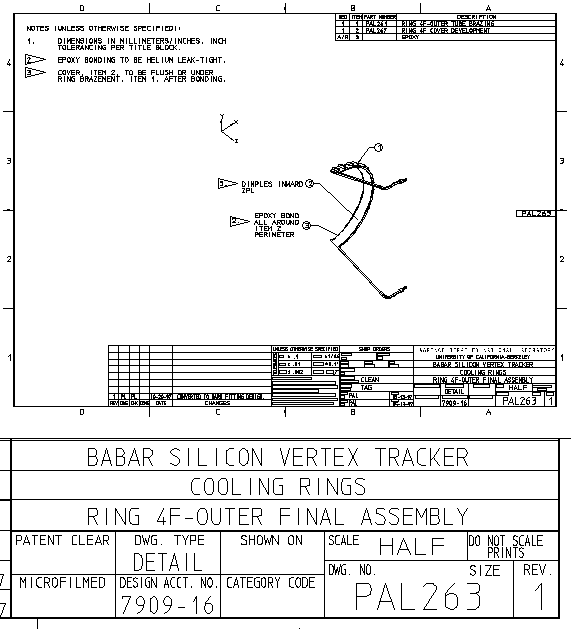

  PAL263  05-09-97  RING 4F-OUTER FINAL ASSEMBLY --> gif dxf

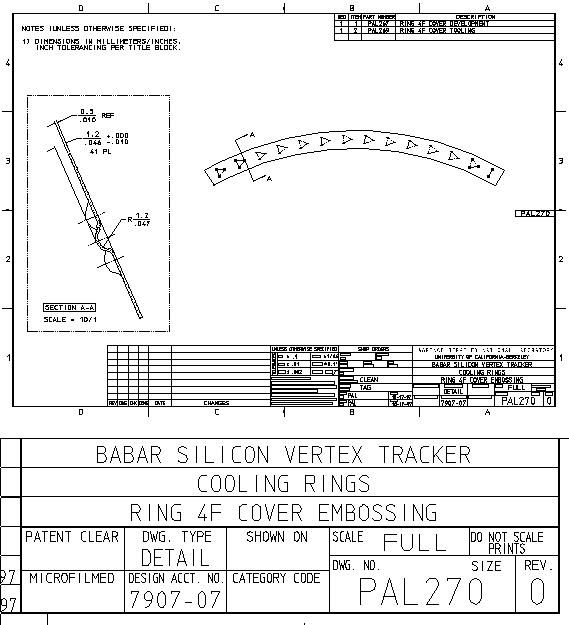

    PAL270  05-09-97  RING 4F COVER EMBOSSING --> gif dxf
      PAL269  05-09-97  RING 4F COVER TOOLING --> gif dxf

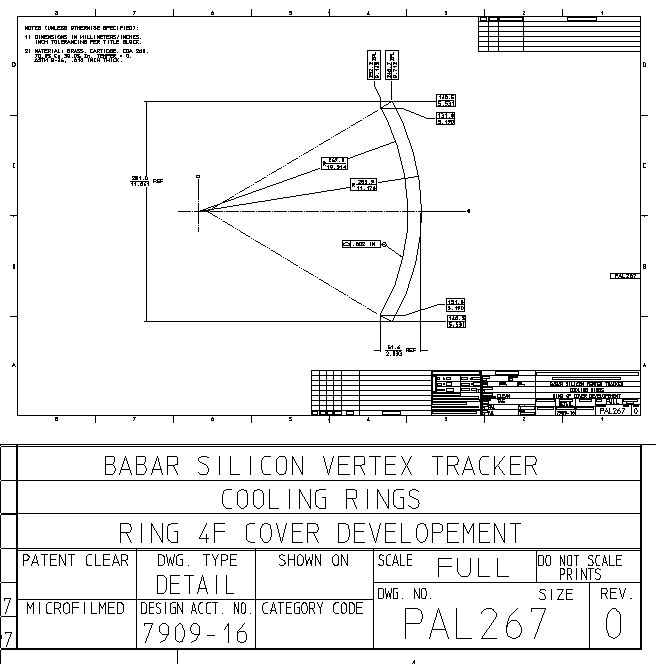

        PAL267  05-09-97  RING 4F COVER DEVELOPMENT --> gif dxf

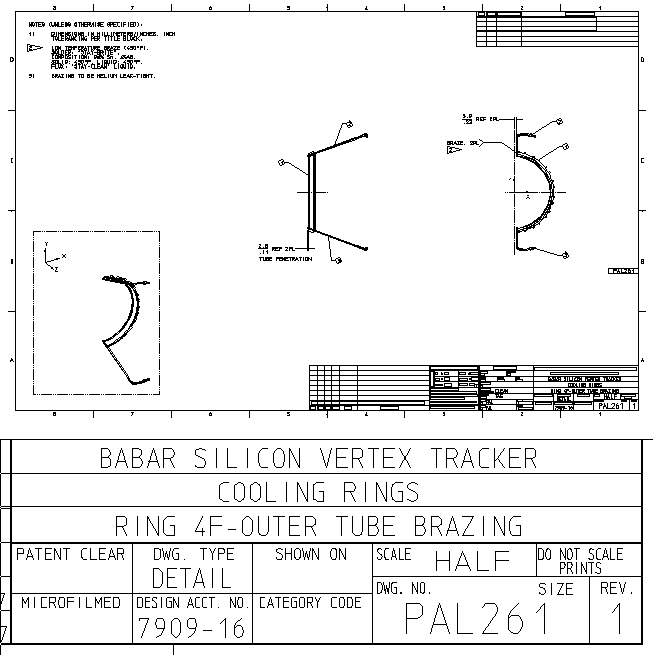

    PAL261  05-09-97  RING 4F-OUTER TUBE BRAZING --> gif dxf
      PAL265  05-09-97  WATER LINE, RING 4F, TYPE A --> gif dxf
        PAL406  ADAPTER, BARB FITTING --> gif dxf
      PAL266  05-09-97  WATER LINE, RING 4F, TYPE B --> gif dxf
        PAL406  ADAPTER, BARB FITTING --> gif dxf
      PAL260  05-09-97  RING 4F SPLITTING --> gif dxf
        PAL209  01-15-97  RING 4F MACHINING --> gif dxf

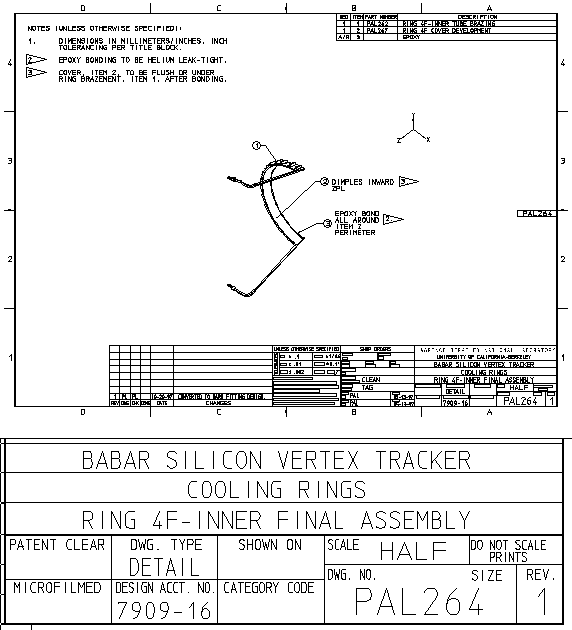

  PAL264  05-09-97  RING 4F-INNER FINAL ASSEMBLY --> gif dxf
    PAL270  05-09-97  RING 4F COVER EMBOSSING --> gif dxf
      PAL269  05-09-97  RING 4F COVER TOOLING --> gif dxf
        PAL267  05-09-97  RING 4F COVER DEVELOPMENT --> gif dxf

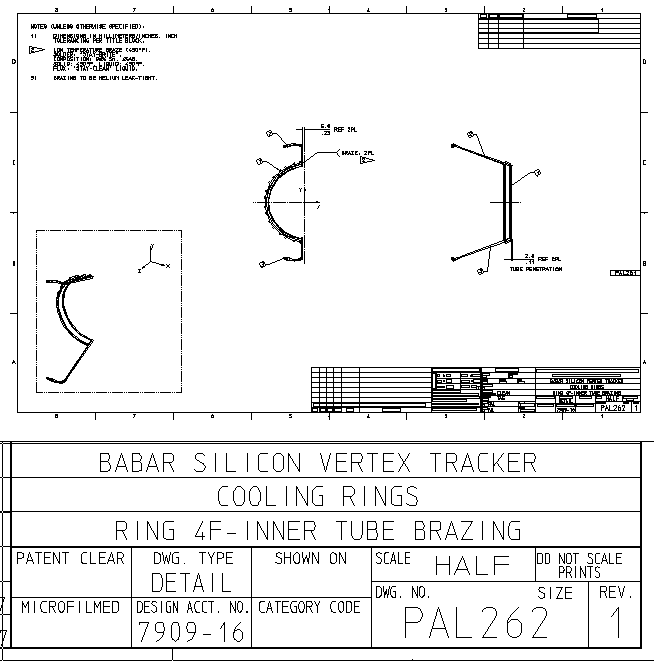

    PAL262  05-09-97  RING 4F-INNER TUBE BRAZING --> gif dxf
      PAL265  05-09-97  WATER LINE, RING 4F, TYPE A --> gif dxf
        PAL406  ADAPTER, BARB FITTING --> gif dxf
      PAL266  05-09-97  WATER LINE, RING 4F, TYPE B --> gif dxf
        PAL406  ADAPTER, BARB FITTING --> gif dxf
      PAL260  05-09-97  RING 4F SPLITTING --> gif dxf
        PAL209  01-15-97  RING 4F MACHINING --> gif dxf
NOTES:
  • Indented text lines of drawing lists report to next higher outdented line.
  • Drawings may be listed more than once.
  • Drawing files are the most current revision.
    •
