RING 4B
ASSEMBLY FIXTURE
DRAWING LIST

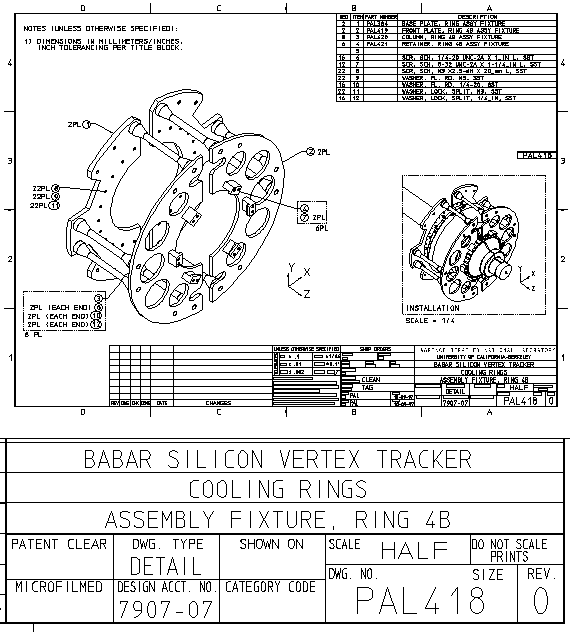

PAL418  ASSEMBLY FIXTURE, RING 4B --> gif dxf
  PAL384  BASE PLATE, RING ASSY FIXTURE --> gif dxf
  PAL419  FRONT PLATE, RING 4B ASSY FIXTURE --> gif dxf

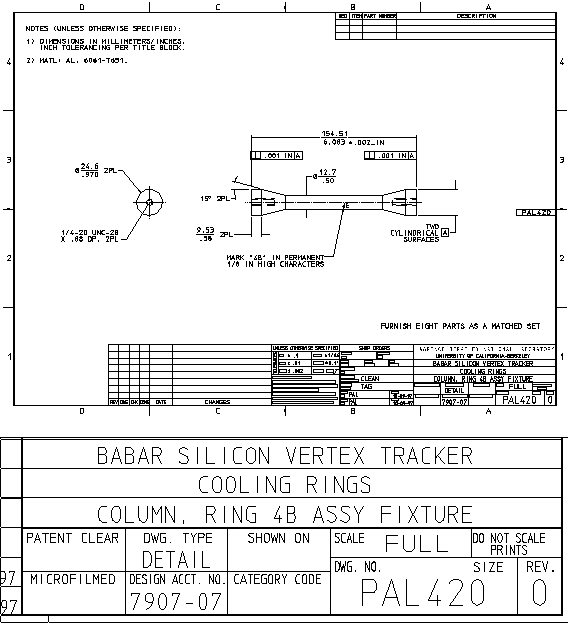

  PAL420  COLUMN, RING 4B ASSY FIXTURE --> gif dxf

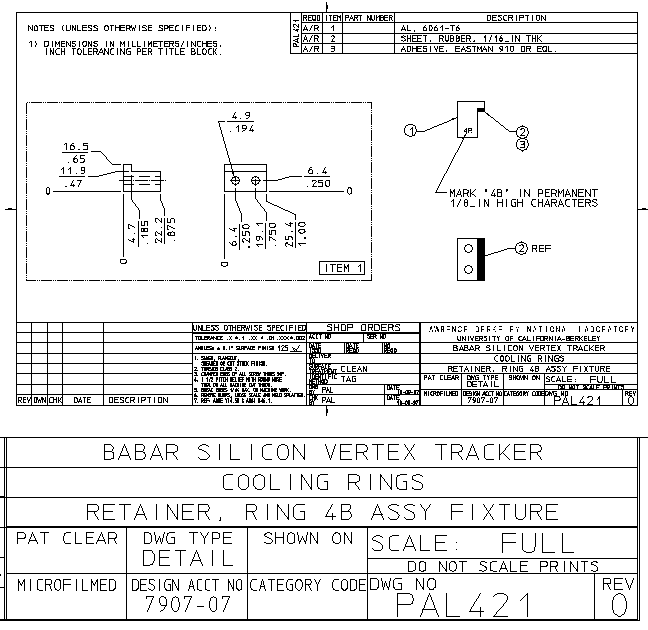

  PAL421  RETAINER, RING 4B ASSY FIXTURE --> gif dxf
NOTES:
  • Indented text lines of drawing lists report to next higher outdented line.
  • Drawings may be listed more than once.
  • Drawing files are the most current revision.
    •
