RING 4B
DRAWING LIST

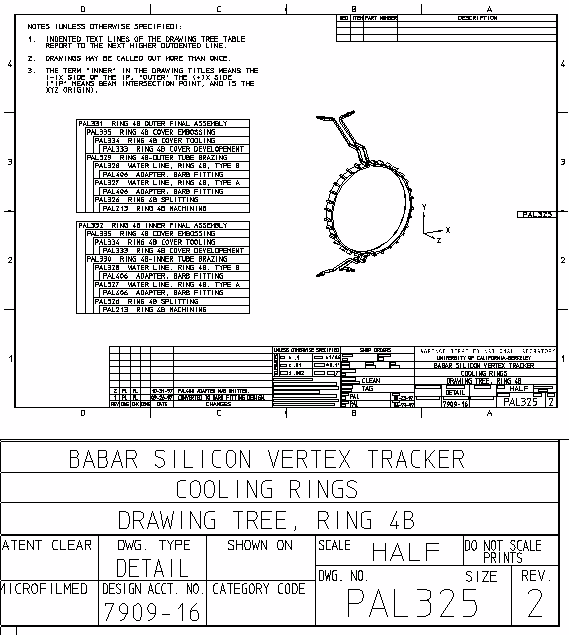

PAL325  DRAWING TREE, RING 4B --> gif dxf

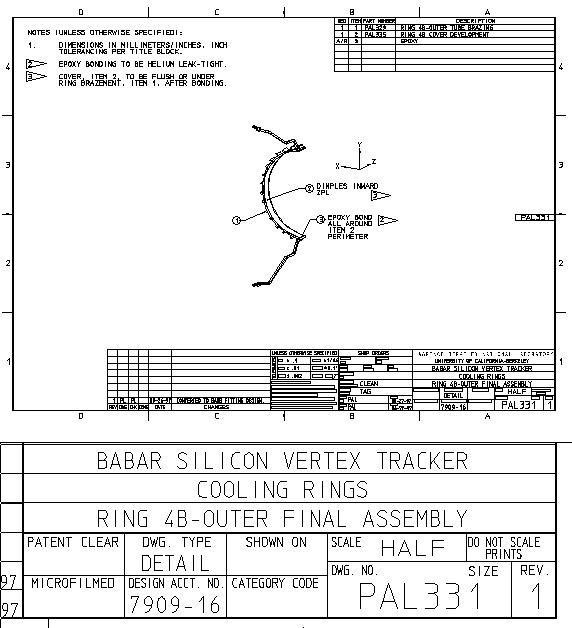

  PAL331  RING 4B OUTER FINAL ASSEMBLY --> gif dxf

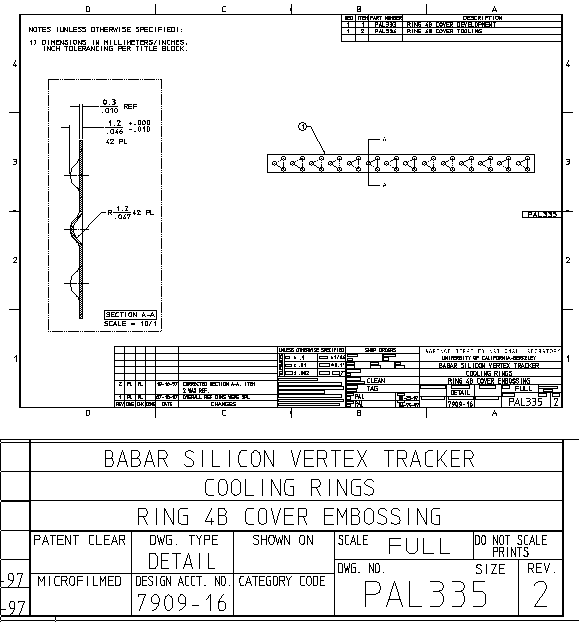

    PAL335  RING 4B COVER EMBOSSING --> gif dxf

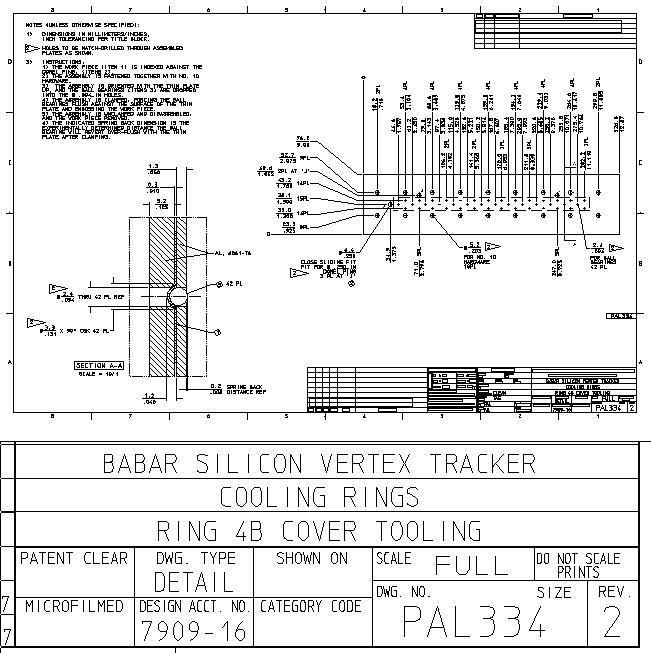

      PAL334  RING 4B COVER TOOLING --> gif dxf

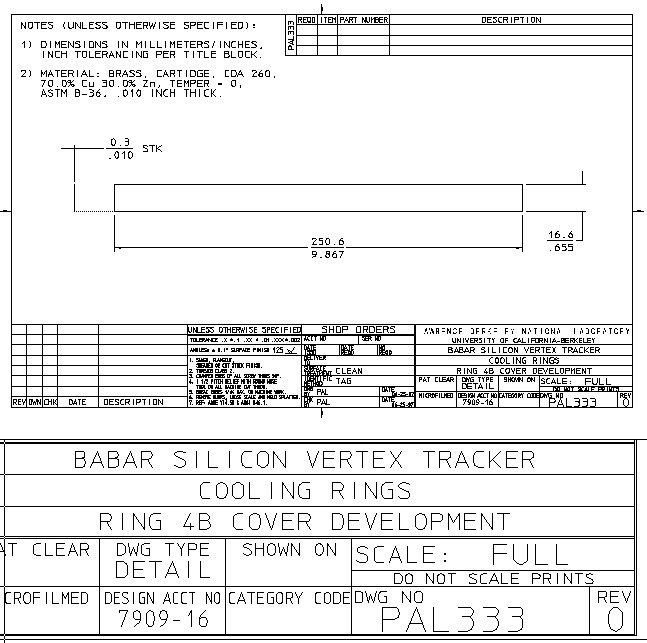

        PAL333  RING 4B COVER DEVELOPEMENT --> gif dxf

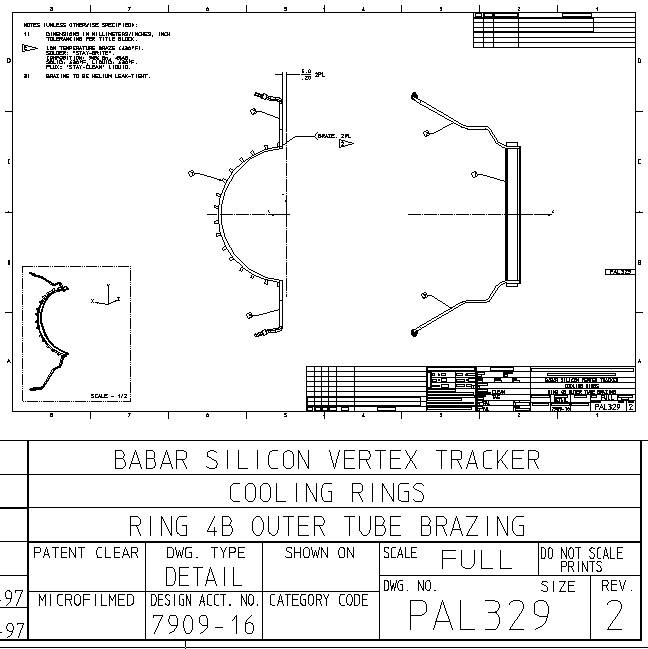

    PAL329  RING 4B-OUTER TUBE BRAZING --> gif dxf
      PAL328  WATER LINE, RING 4B, TYPE B --> gif dxf
        PAL406  ADAPTER, BARB FITTING --> gif dxf
      PAL327  WATER LINE, RING 4B, TYPE A --> gif dxf
        PAL406  ADAPTER, BARB FITTING --> gif dxf

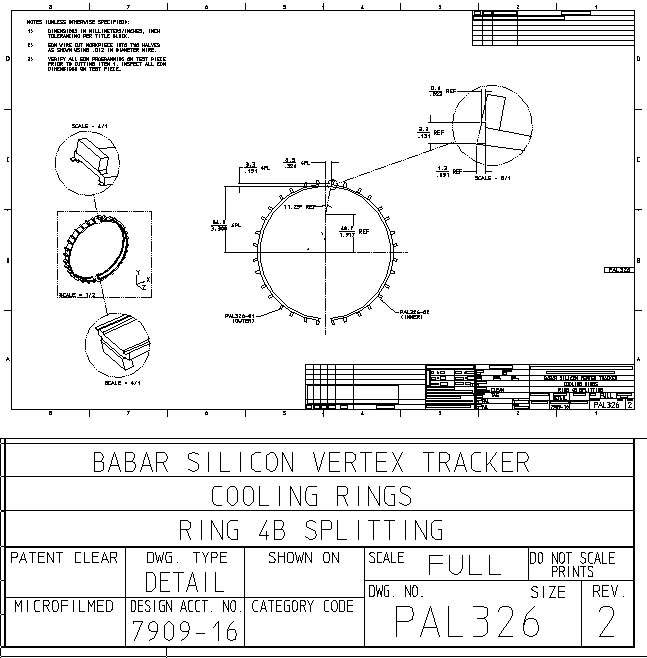

      PAL326  RING 4B SPLITTING --> gif dxf

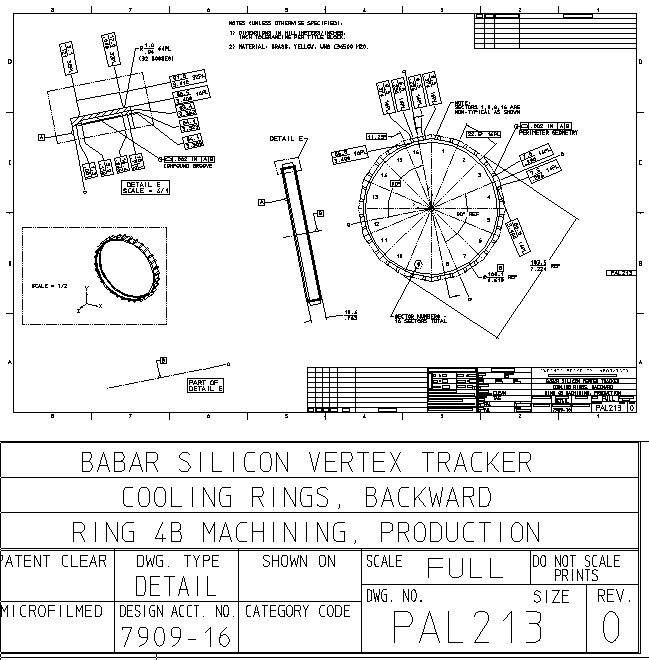

        PAL213  RING 4B MACHINING --> gif dxf

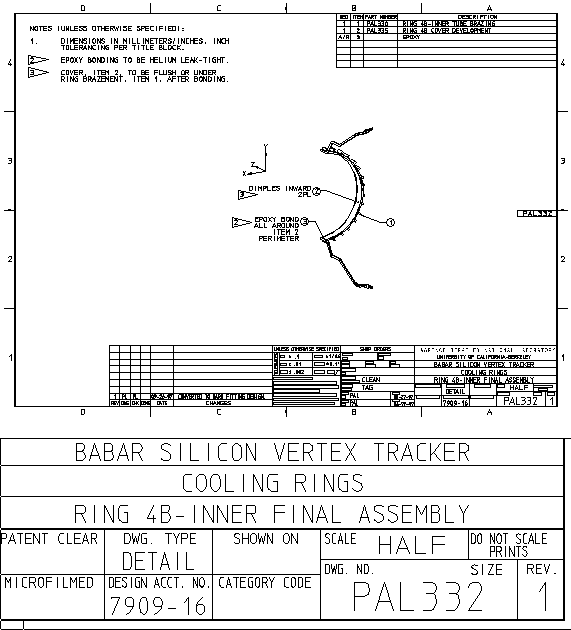

  PAL332  RING 4B INNER FINAL ASSEMBLY --> gif dxf
    PAL335  RING 4B COVER EMBOSSING --> gif dxf
      PAL334  RING 4B COVER TOOLING --> gif dxf
        PAL333  RING 4B COVER DEVELOPEMENT --> gif dxf

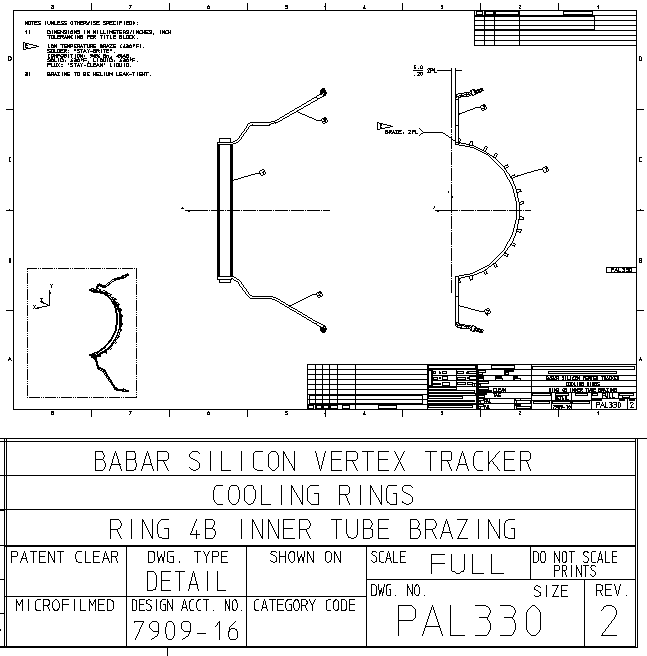

    PAL330  RING 4B-INNER TUBE BRAZING --> gif dxf
      PAL328  WATER LINE, RING 4B, TYPE B --> gif dxf
        PAL406  ADAPTER, BARB FITTING --> gif dxf
      PAL327  WATER LINE, RING 4B, TYPE A --> gif dxf
        PAL406  ADAPTER, BARB FITTING --> gif dxf
      PAL326  RING 4B SPLITTING --> gif dxf
        PAL213  RING 4B MACHINING --> gif dxf
NOTES:
  • Indented text lines of drawing lists report to next higher outdented line.
  • Drawings may be listed more than once.
  • Drawing files are the most current revision.
    •
