RING 3F
ASSEMBLY FIXTURE
DRAWING LIST

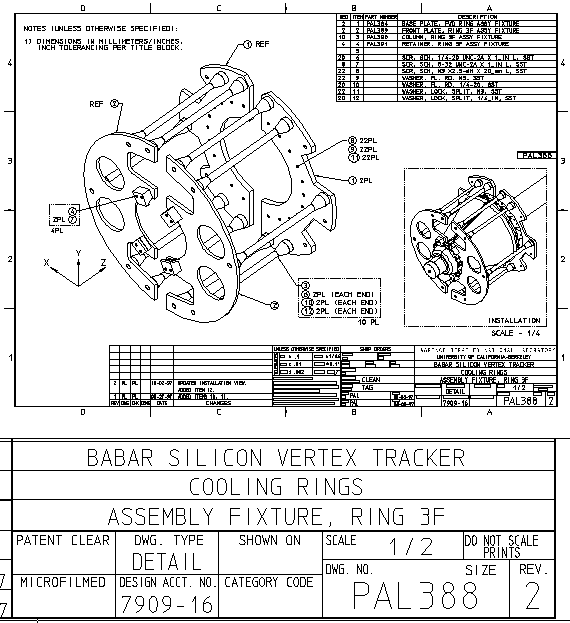

PAL388  ASSEMBLY FIXTURE, RING 3F --> gif dxf
  PAL384  BASE PLATE, FWD RING ASSY FIXTURE --> gif dxf
  PAL389  FRONT PLATE, RING 3F ASSY FIXTURE --> gif dxf

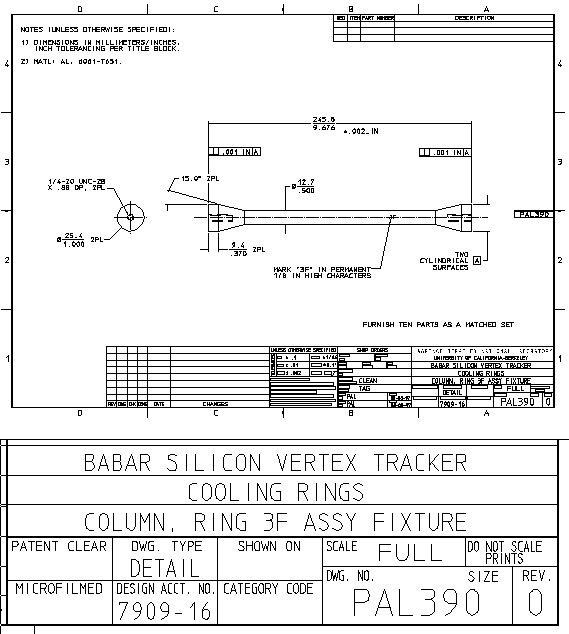

  PAL390  COLUMN, RING 3F ASSY FIXTURE --> gif dxf

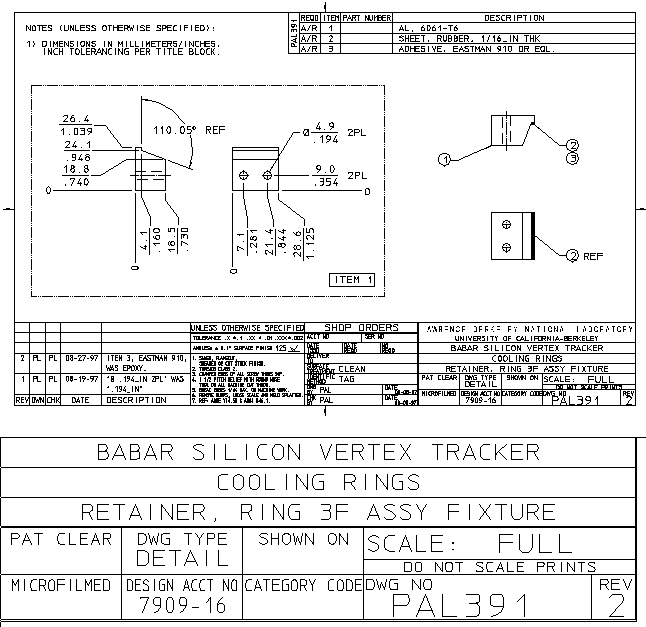

  PAL391  RETAINER, RING 3F ASSY FIXTURE --> gif dxf
NOTES:
  • Indented text lines of drawing lists report to next higher outdented line.
  • Drawings may be listed more than once.
  • Drawing files are the most current revision.
    •
