RING 3B
ASSEMBLY FIXTURE
DRAWING LIST

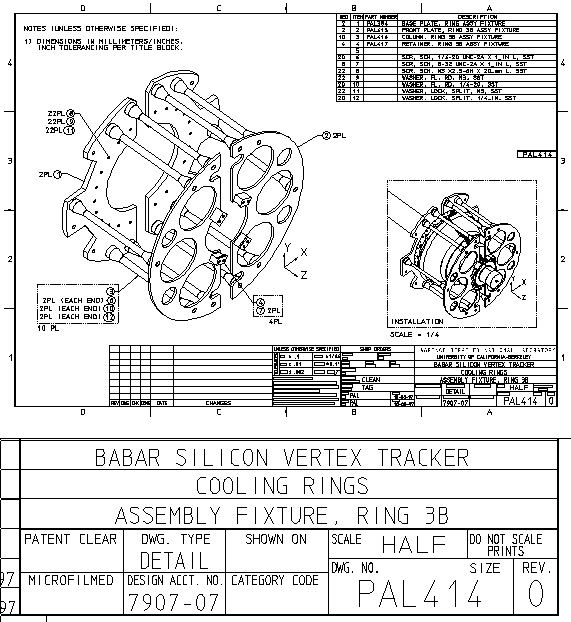

PAL414  ASSEMBLY FIXTURE, RING 3B --> gif dxf
  PAL384  BASE PLATE, RING ASSY FIXTURE --> gif dxf
  PAL415  FRONT PLATE, RING 3B ASSY FIXTURE --> gif dxf
  PAL416  COLUMN, RING 3B ASSY FIXTURE --> gif dxf

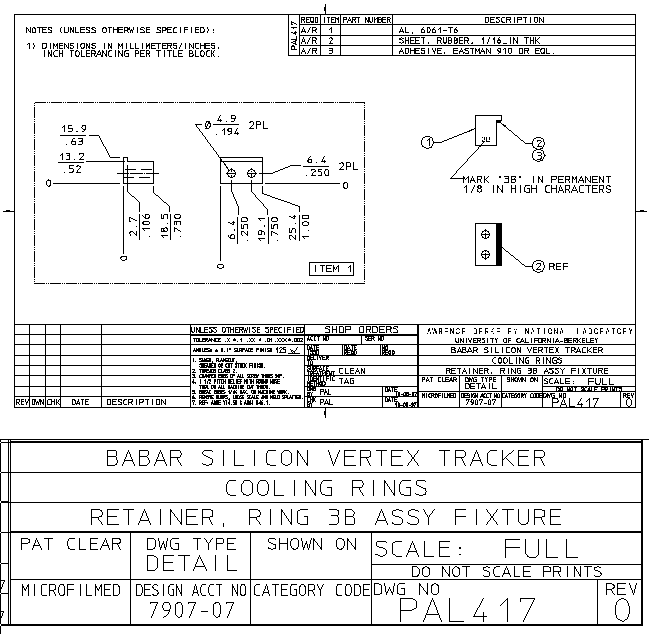

  PAL417  RETAINER, RING 3B ASSY FIXTURE --> gif dxf
NOTES:
  • Indented text lines of drawing lists report to next higher outdented line.
  • Drawings may be listed more than once.
  • Drawing files are the most current revision.
    •
