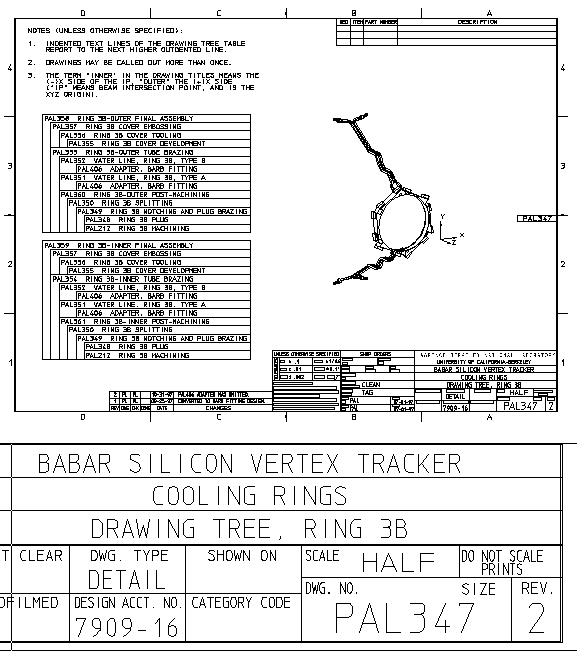

PAL347  DRAWING TREE, RING 3B --> gif dxf

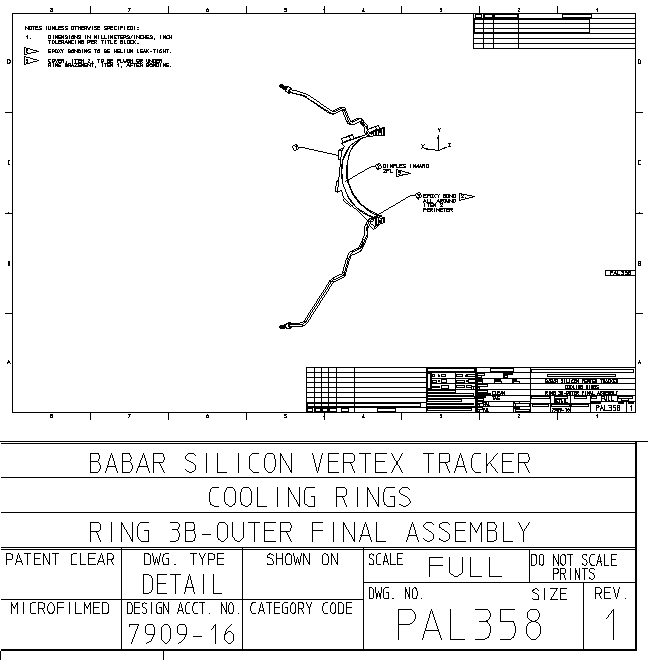

  PAL358  RING 3B-OUTER FINAL ASSEMBLY --> gif dxf

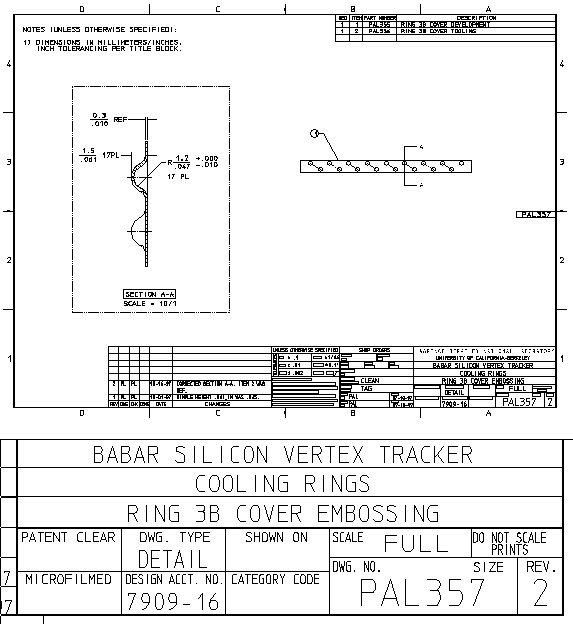

    PAL357  RING 3B COVER EMBOSSING --> gif dxf

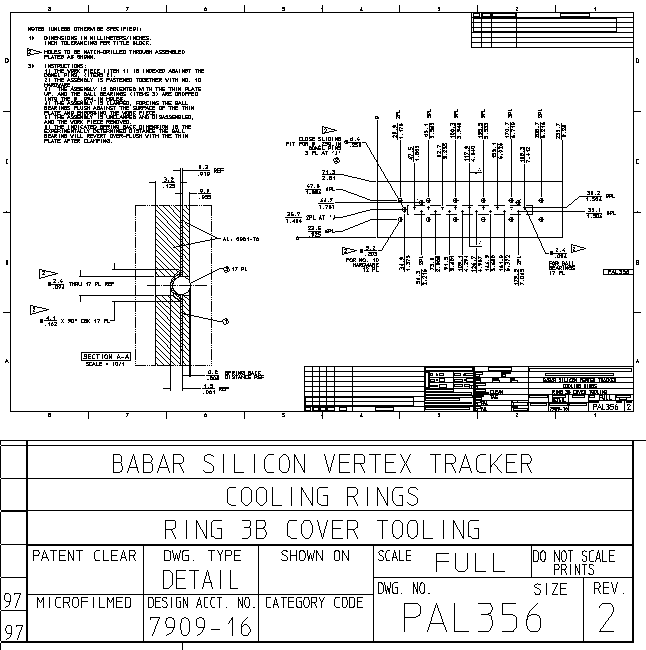

      PAL356  RING 3B COVER TOOLING --> gif dxf

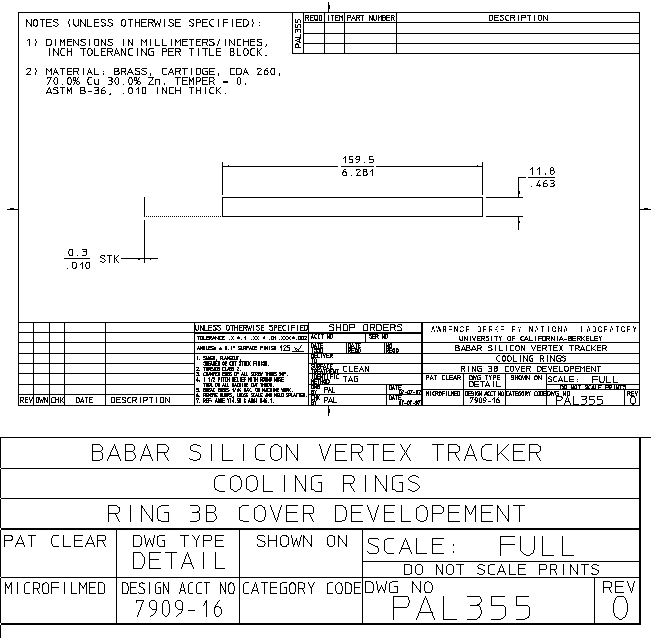

        PAL355  RING 3B COVER DEVELOPMENT --> gif dxf

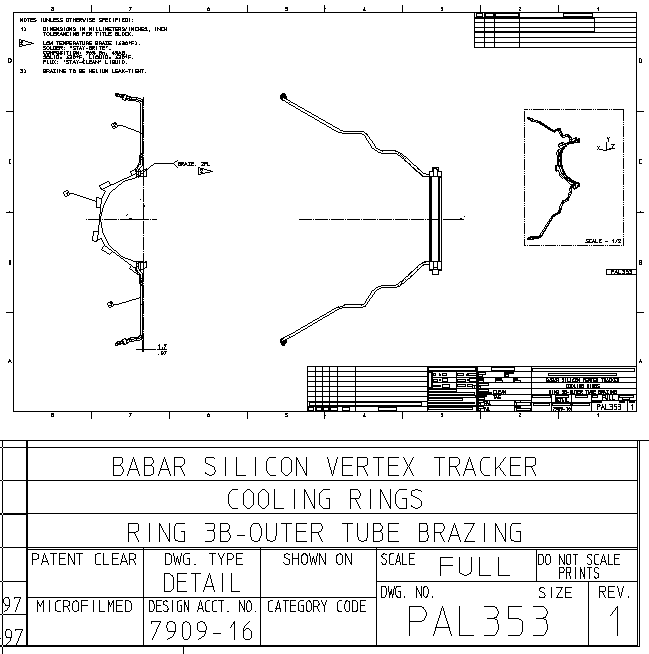

    PAL353  RING 3B-OUTER TUBE BRAZING --> gif dxf
      PAL352  WATER LINE, RING 3B, TYPE B --> gif dxf
          PAL406  ADAPTER, BARB FITTING --> gif dxf
      PAL351  WATER LINE, RING 3B, TYPE A --> gif dxf
          PAL406  ADAPTER, BARB FITTING --> gif dxf

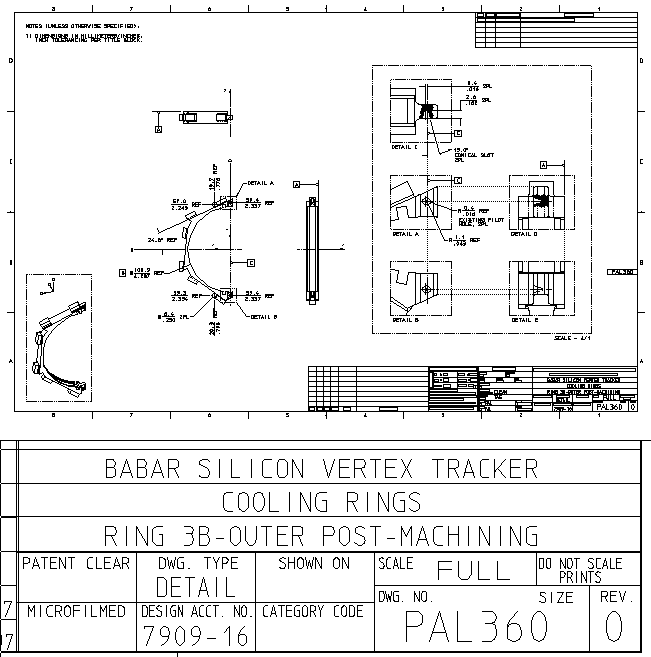

      PAL360  RING 3B-OUTER POST-MACHINING --> gif dxf

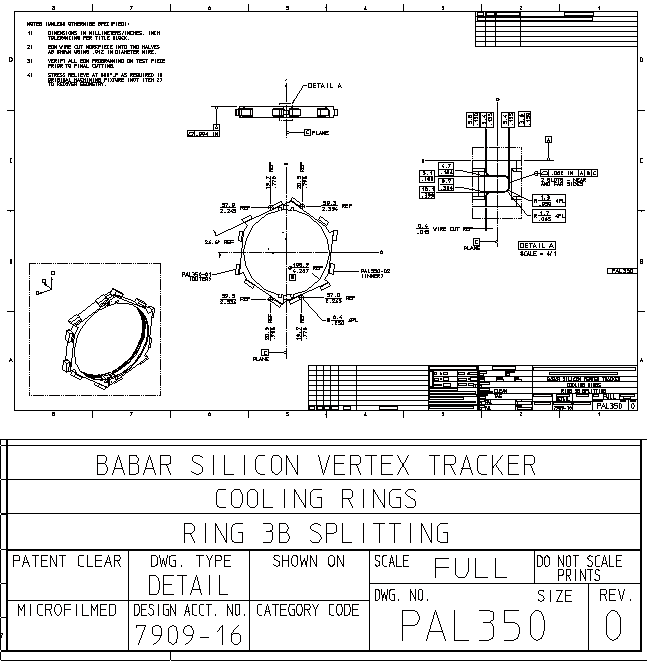

        PAL350  RING 3B SPLITTING --> gif dxf

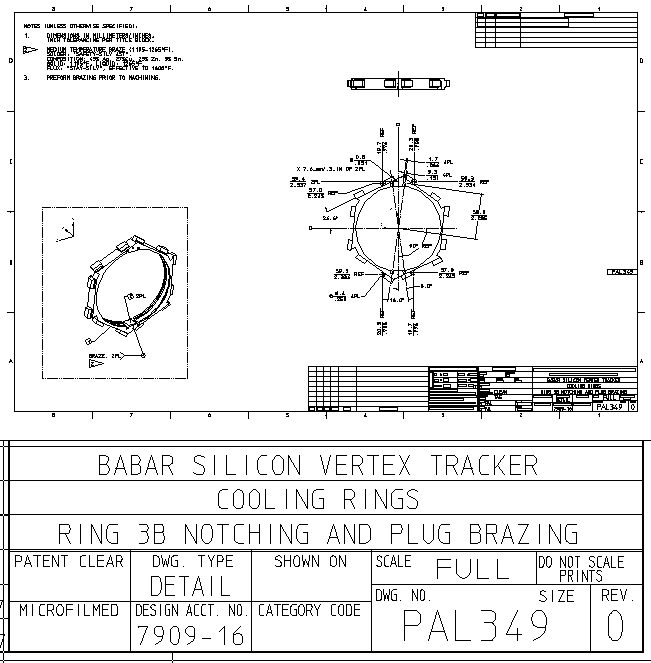

          PAL349  RING 3B NOTCHING AND PLUG BRAZING --> gif dxf

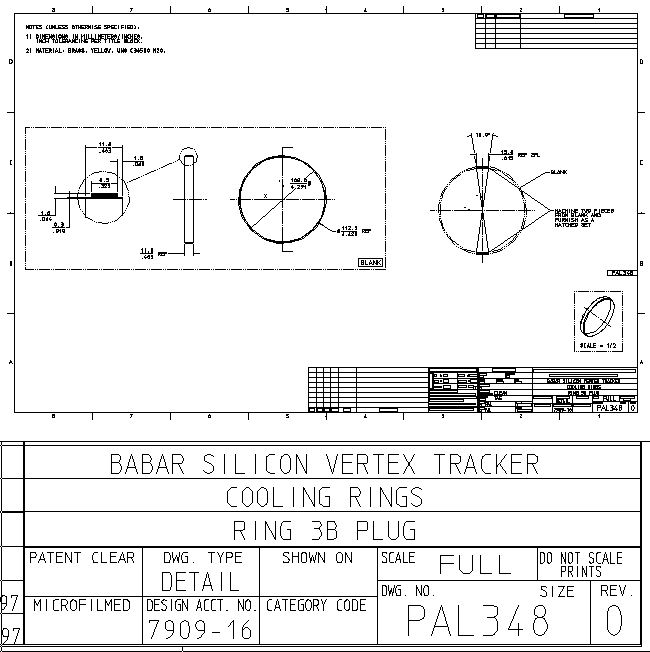

            PAL348  RING 3B PLUG --> gif dxf

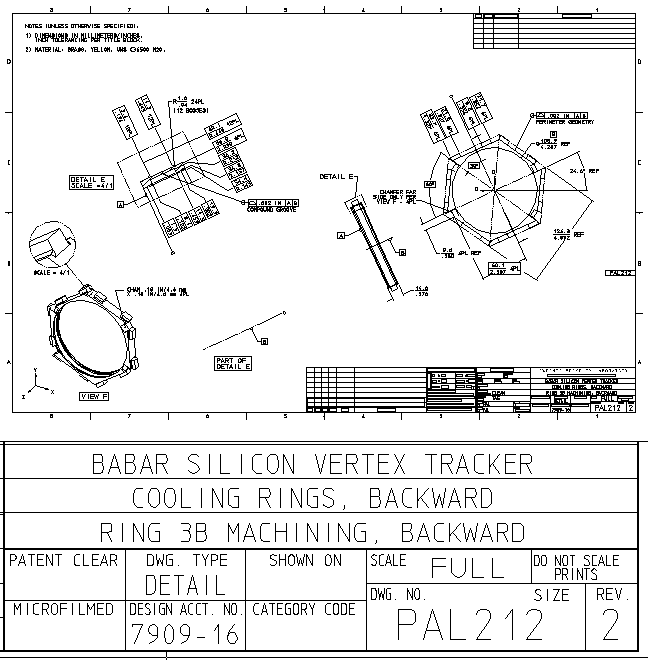

            PAL212  RING 3B MACHINING --> gif dxf

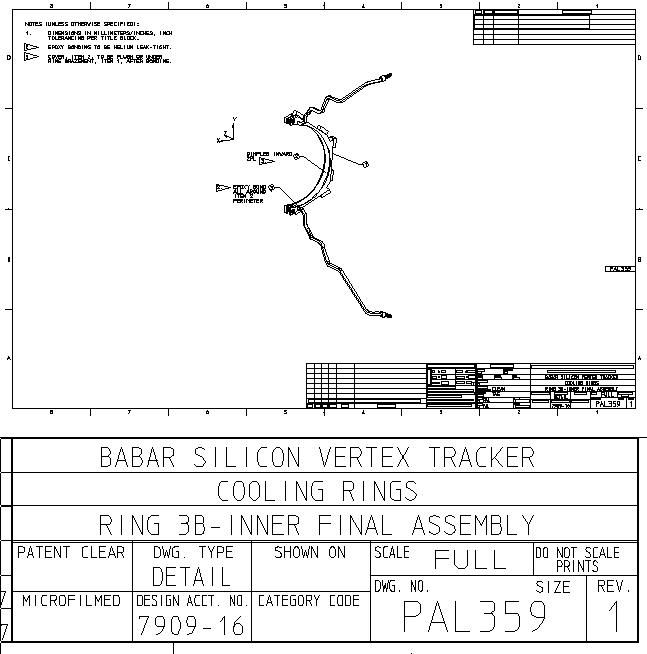

  PAL359  RING 3B-INNER FINAL ASSEMBLY --> gif dxf
    PAL357  RING 3B COVER EMBOSSING --> gif dxf
      PAL356  RING 3B COVER TOOLING --> gif dxf
        PAL355  RING 3B COVER DEVELOPMENT --> gif dxf

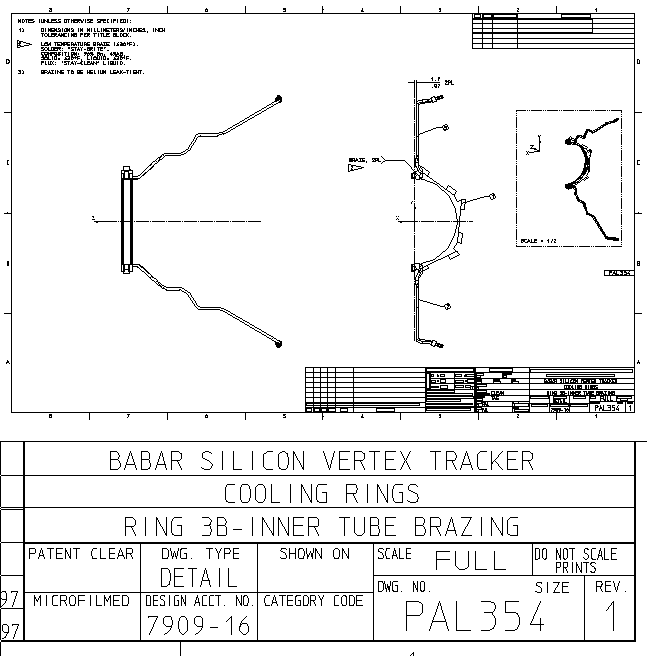

    PAL354  RING 3B-INNER TUBE BRAZING --> gif dxf
      PAL352  WATER LINE, RING 3B, TYPE B --> gif dxf
          PAL406  ADAPTER, BARB FITTING --> gif dxf
      PAL351  WATER LINE, RING 3B, TYPE A --> gif dxf
          PAL406  ADAPTER, BARB FITTING --> gif dxf
      PAL361  RING 3B-INNER POST-MACHINING --> gif dxf
        PAL350  RING 3B SPLITTING --> gif dxf
          PAL349  RING 3B NOTCHING AND PLUG BRAZING --> gif dxf
            PAL348  RING 3B PLUG --> gif dxf
            PAL212  RING 3B MACHINING --> gif dxf
