RING 1-2F
DRAWING LIST

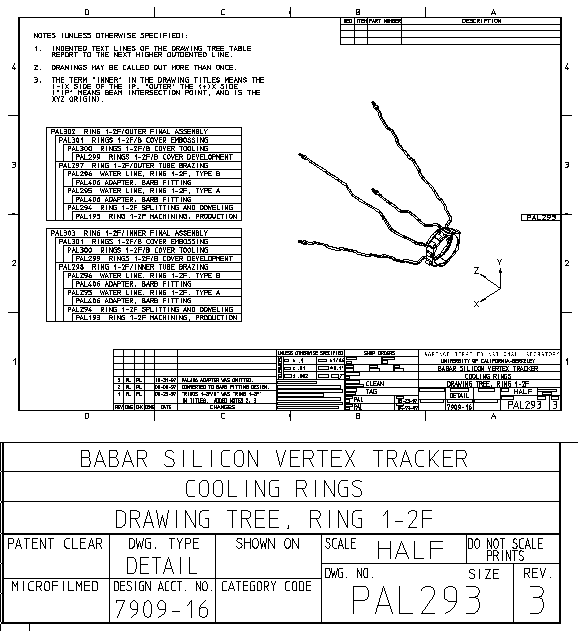

PAL293  DRAWING TREE, RING 1-2F --> gif dxf

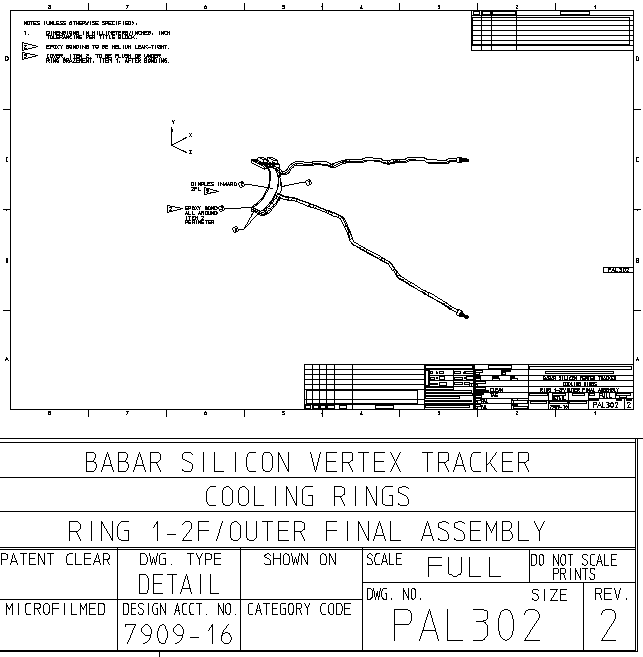

  PAL302  RING 1-2F/OUTER FINAL ASSEMBLY --> gif dxf

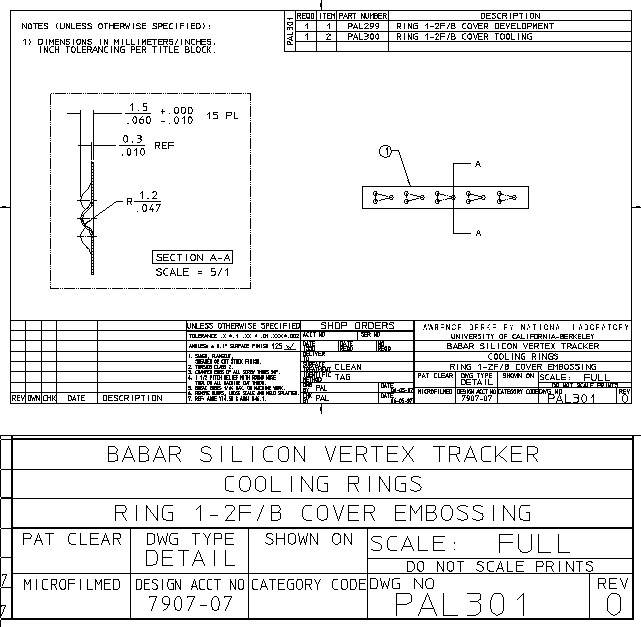

    PAL301  RINGS 1-2F/B COVER EMBOSSING --> gif dxf

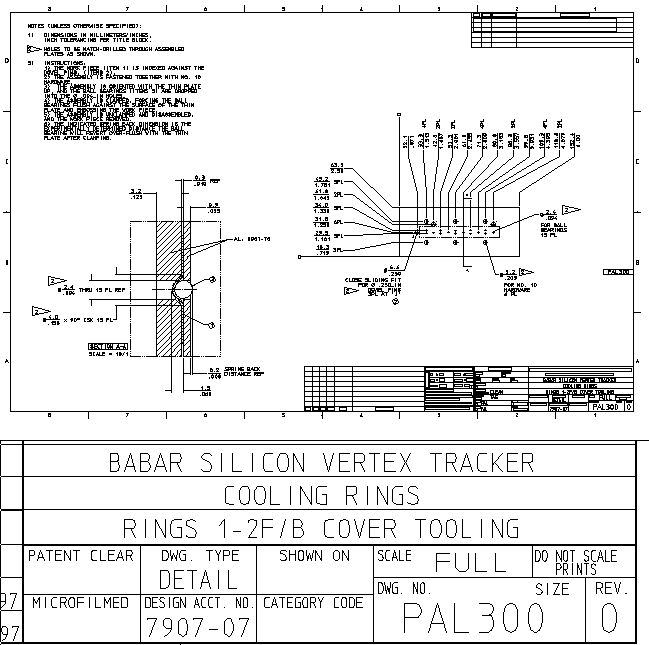

      PAL300  RINGS 1-2F/B COVER TOOLING --> gif dxf

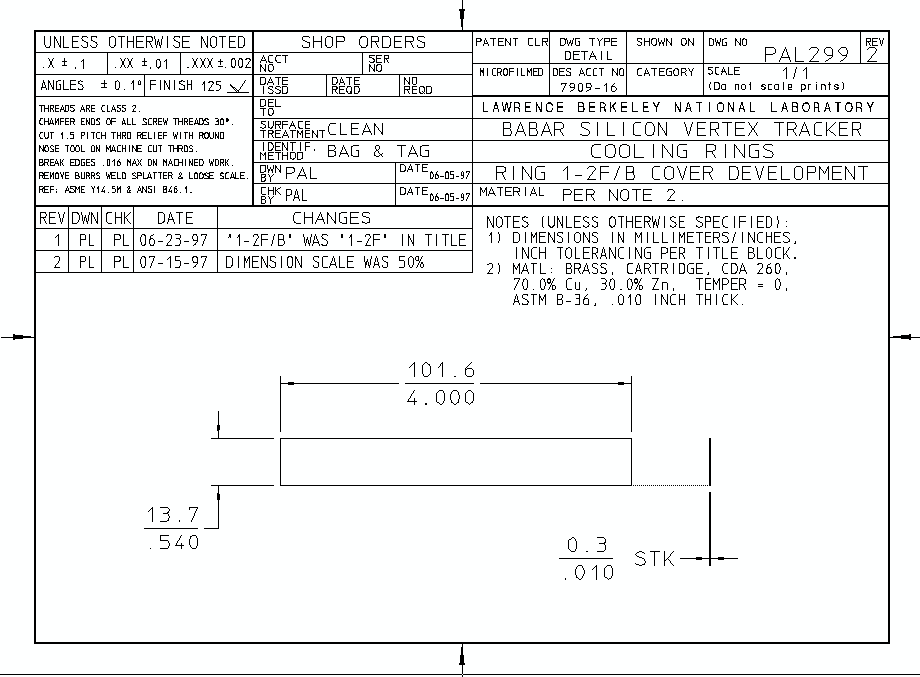

        PAL299  RINGS 1-2F/B COVER DEVELOPMENT --> gif dxf

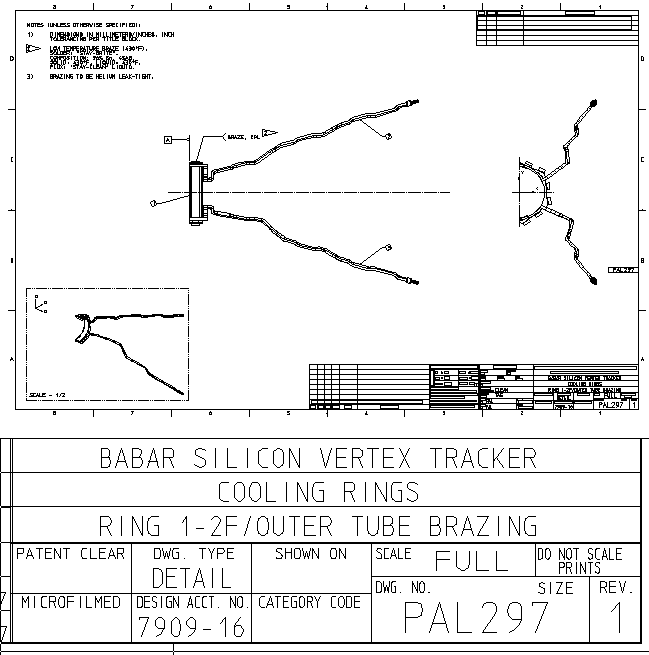

    PAL297  RING 1-2F/OUTER TUBE BRAZING --> gif dxf
      PAL296  WATER LINE, RING 1-2F, TYPE B --> gif dxf
        PAL406 ADAPTER, BARB FITTING --> gif dxf
      PAL295  WATER LINE, RING 1-2F, TYPE A --> gif dxf
        PAL406 ADAPTER, BARB FITTING --> gif dxf

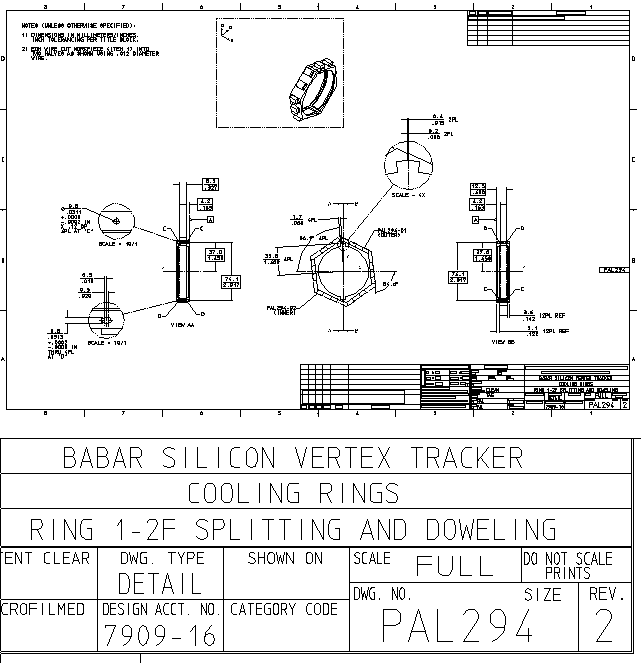

      PAL294  RING 1-2F SPLITTING AND DOWELING --> gif dxf

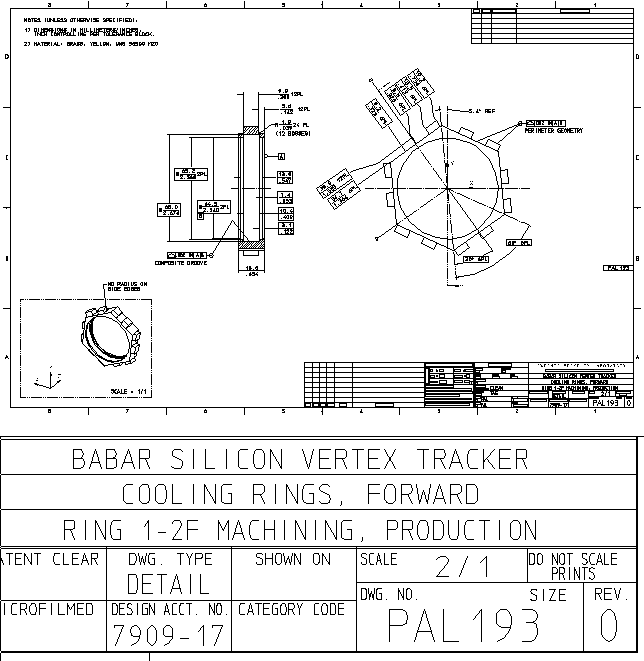

        PAL193  RING 1-2F MACHINING, PRODUCTION --> gif dxf

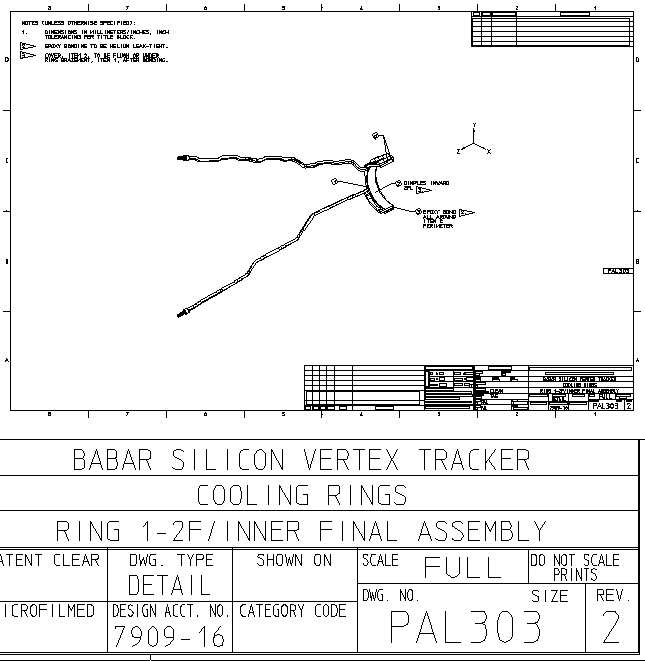

  PAL303  RING 1-2F/INNER FINAL ASSEMBLY --> gif dxf
    PAL301  RINGS 1-2F/B COVER EMBOSSING --> gif dxf
      PAL300  RINGS 1-2F/B COVER TOOLING --> gif dxf
        PAL299  RINGS 1-2F/B COVER DEVELOPMENT --> gif dxf

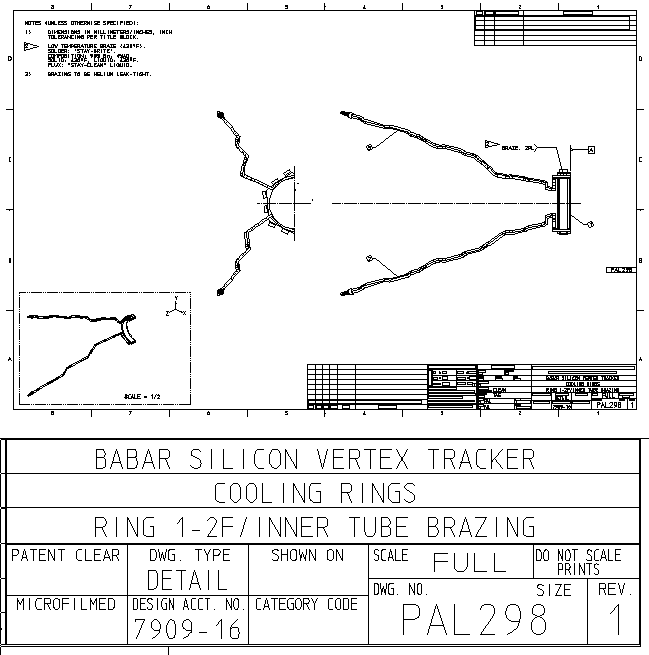

    PAL298  RING 1-2F/INNER TUBE BRAZING --> gif dxf
      PAL296  WATER LINE, RING 1-2F, TYPE B --> gif dxf
        PAL406 ADAPTER, BARB FITTING --> gif dxf
      PAL295  WATER LINE, RING 1-2F, TYPE A --> gif dxf
        PAL406 ADAPTER, BARB FITTING --> gif dxf
      PAL294  RING 1-2F SPLITTING AND DOWELING --> gif dxf
        PAL193  RING 1-2F MACHINING, PRODUCTION --> gif dxf
NOTES:
  • Indented text lines of drawing lists report to next higher outdented line.
  • Drawings may be listed more than once.
  • Drawing files are the most current revision.
    •
