RING 1-2B
DRAWING LIST

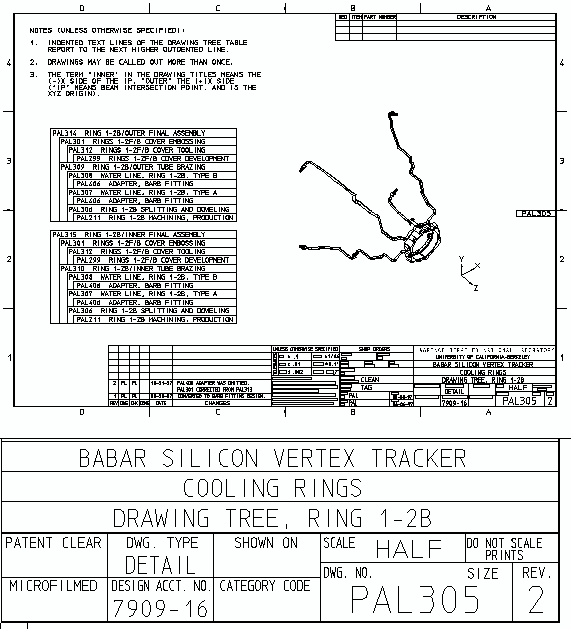

PAL305  DRAWING TREE, RING 1-2B --> gif dxf

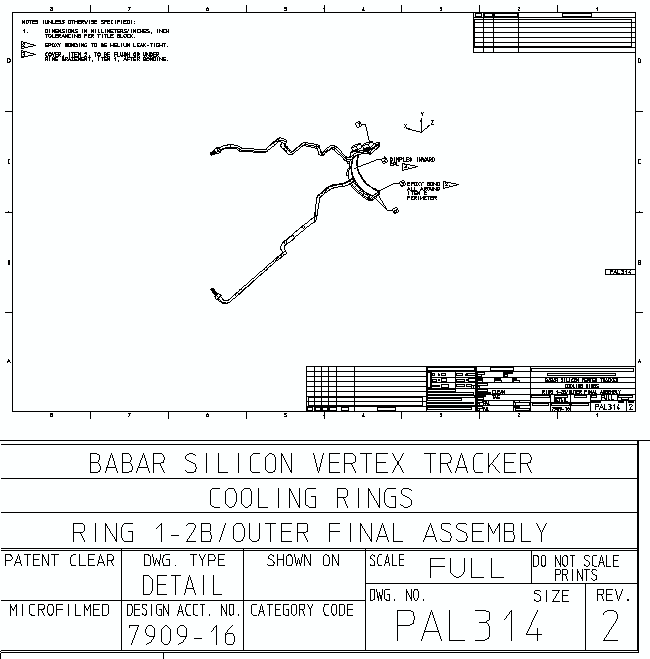

  PAL314  RING 1-2B/OUTER FINAL ASSEMBLY --> gif dxf
    PAL301  RINGS 1-2F/B COVER EMBOSSING --> gif dxf
      PAL312  RINGS 1-2F/B COVER TOOLING --> gif dxf
        PAL299  RINGS 1-2F/B COVER DEVELOPMENT --> gif dxf

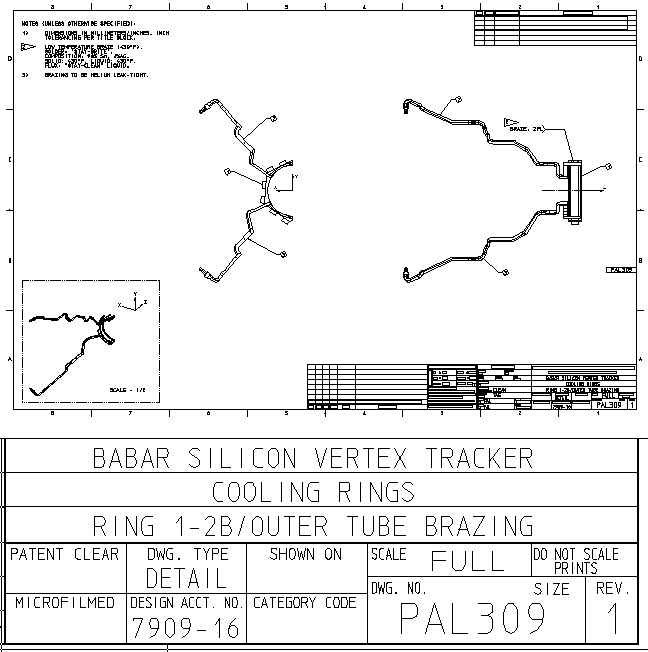

    PAL309  RING 1-2B/OUTER TUBE BRAZING --> gif dxf
      PAL308  WATER LINE, RING 1-2B, TYPE B --> gif dxf
        PAL406  ADAPTER, BARB FITTING --> gif dxf
      PAL307  WATER LINE, RING 1-2B, TYPE A --> gif dxf
        PAL406  ADAPTER, BARB FITTING --> gif dxf

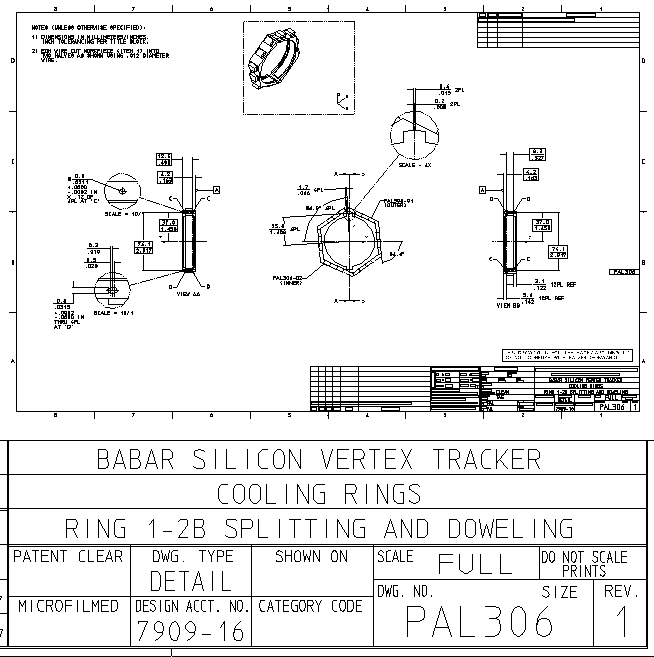

      PAL306  RING 1-2B SPLITTING AND DOWELING --> gif dxf

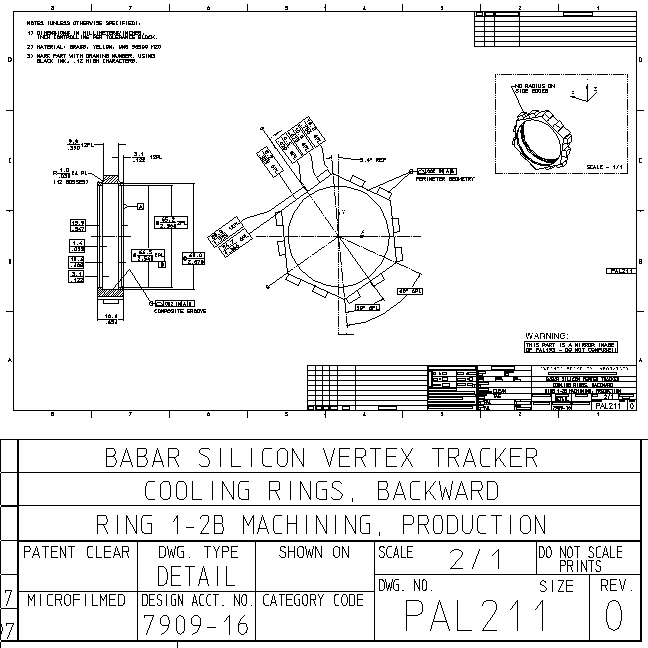

        PAL211  RING 1-2B MACHINING, PRODUCTION --> gif dxf

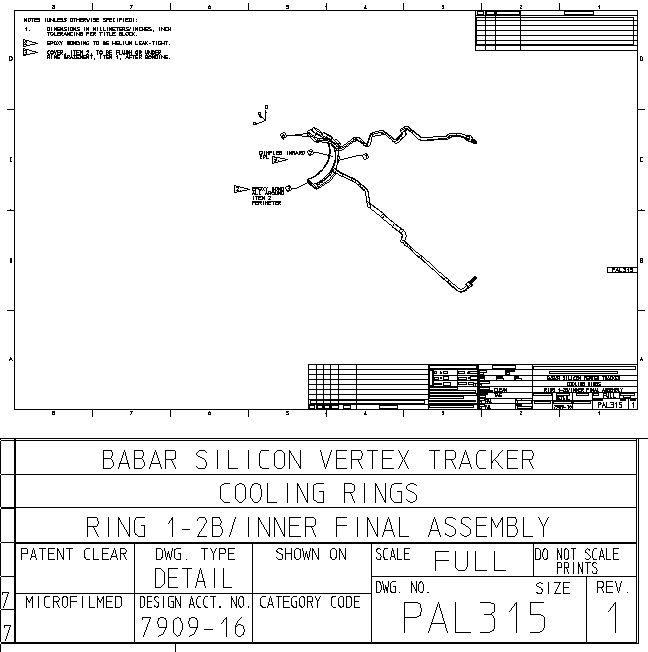

  PAL315  RING 1-2B/INNER FINAL ASSEMBLY --> gif dxf
    PAL301  RINGS 1-2F/B COVER EMBOSSING --> gif dxf
      PAL312  RINGS 1-2F/B COVER TOOLING --> gif dxf
        PAL299  RINGS 1-2F/B COVER DEVELOPMENT --> gif dxf

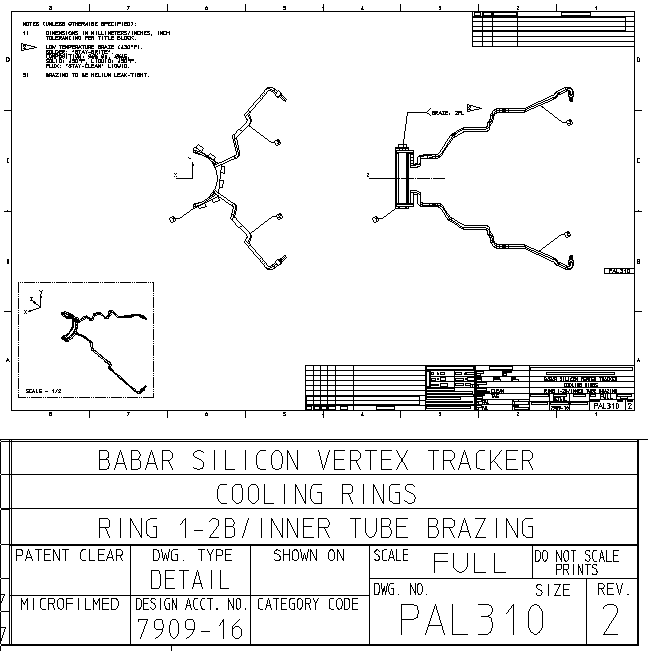

    PAL310  RING 1-2B/INNER TUBE BRAZING --> gif dxf
      PAL308  WATER LINE, RING 1-2B, TYPE B --> gif dxf
        PAL406  ADAPTER, BARB FITTING --> gif dxf
      PAL307  WATER LINE, RING 1-2B, TYPE A --> gif dxf
        PAL406  ADAPTER, BARB FITTING --> gif dxf
      PAL306  RING 1-2B SPLITTING AND DOWELING --> gif dxf
        PAL211  RING 1-2B MACHINING, PRODUCTION --> gif dxf
NOTES:
  • Indented text lines of drawing lists report to next higher outdented line.
  • Drawings may be listed more than once.
  • Drawing files are the most current revision.
    •
