FORWARD CONE LATCH
DRAWING LIST

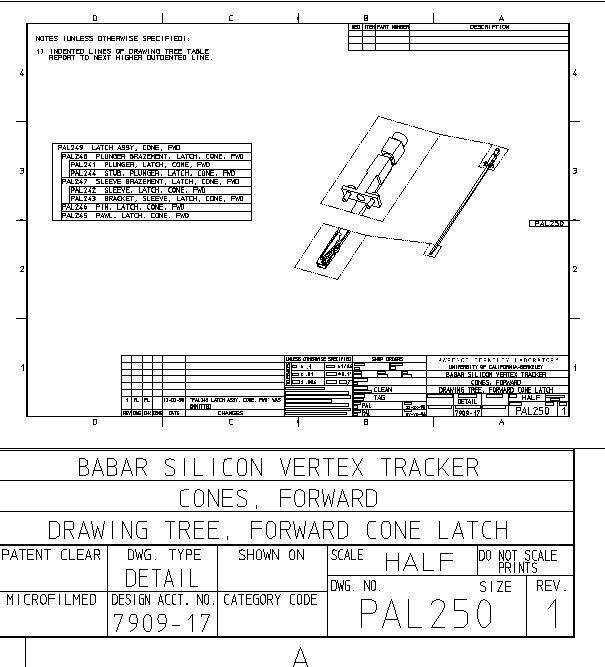

PAL250  DRAWING TREE, FORWARD CONE LATCH --> gif dxf
  PAL249  LATCH ASSY, CONE, FWD --> gif dxf

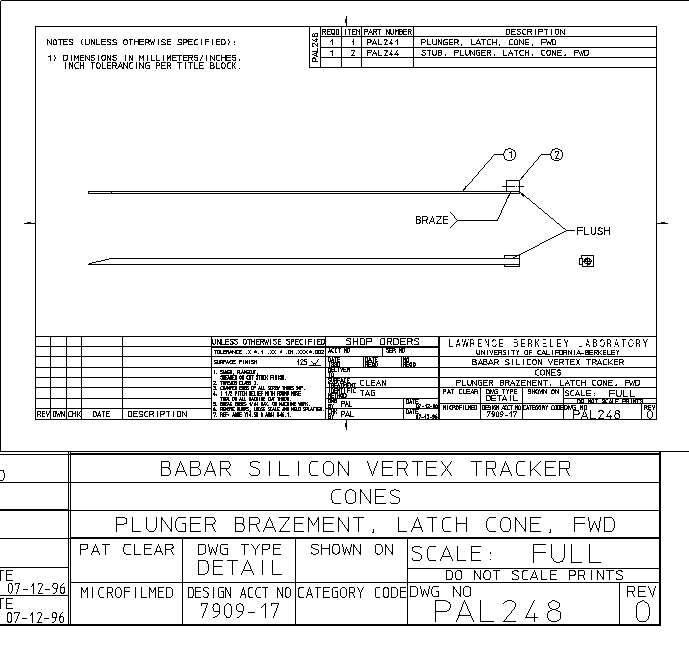

    PAL248  PLUNGER BRAZEMENT, LATCH, CONE, FWD --> gif dxf

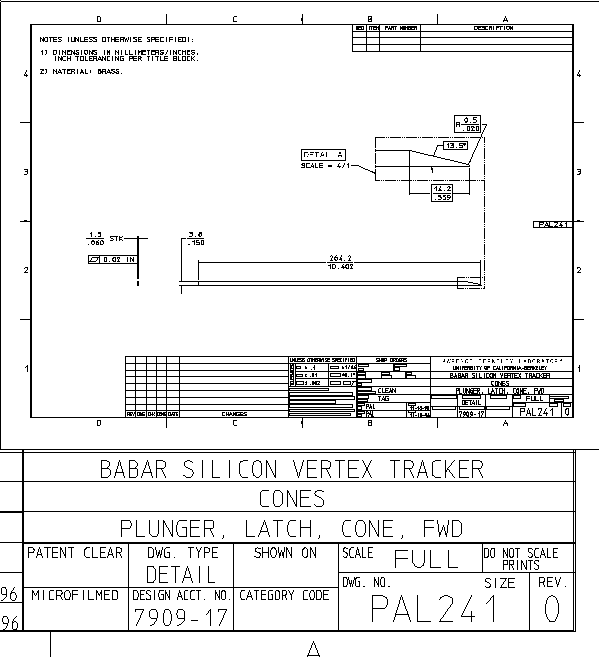

      PAL241  PLUNGER, LATCH, CONE, FWD --> gif dxf

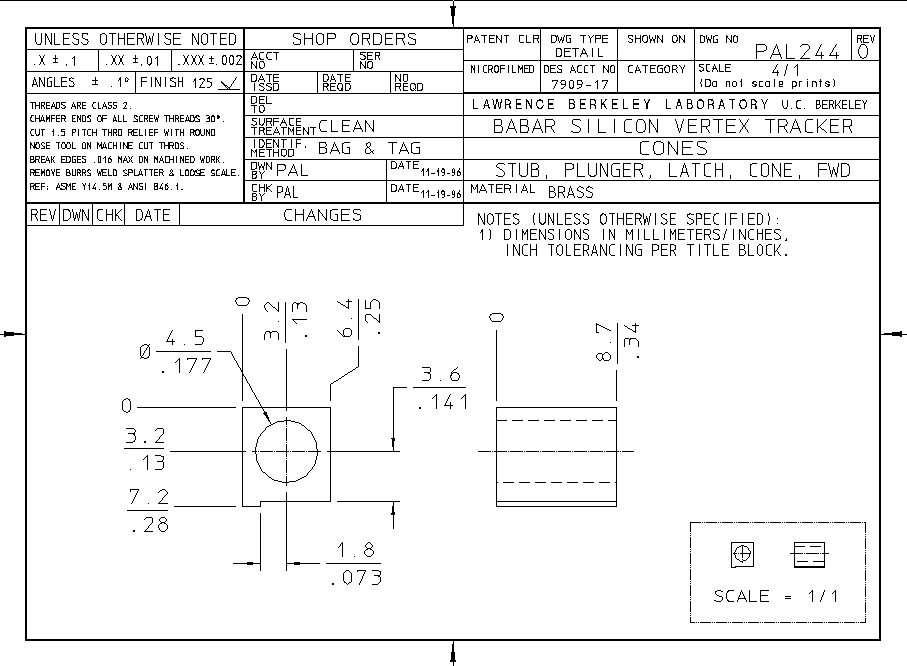

      PAL244  STUB, PLUNGER, LATCH, CONE, FWD --> gif dxf

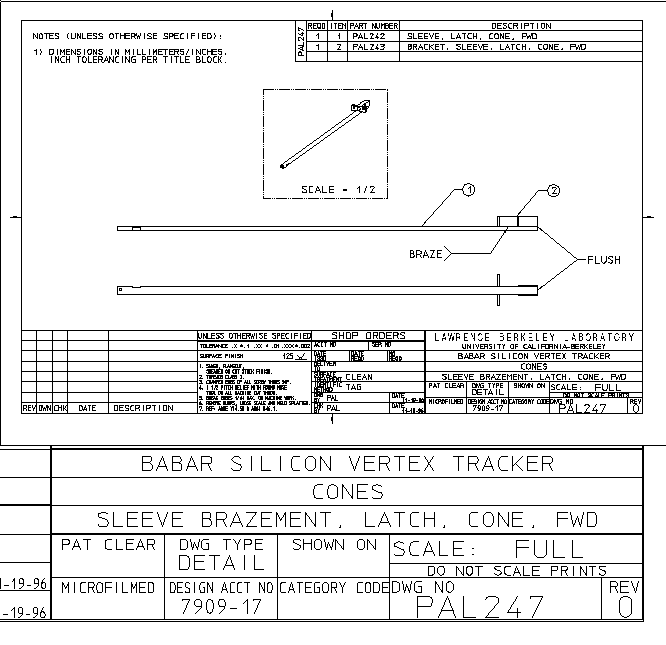

    PAL247  SLEEVE BRAZEMENT, LATCH, CONE, FWD --> gif dxf

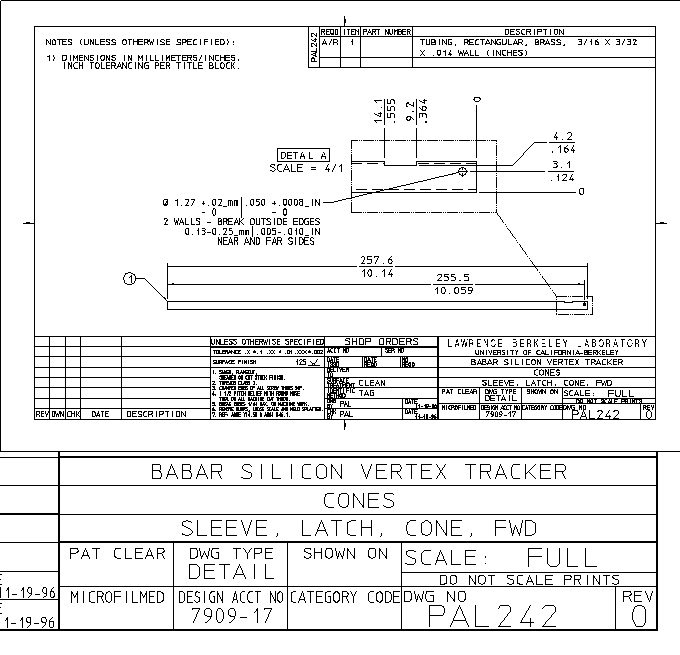

      PAL242  SLEEVE, LATCH, CONE, FWD --> gif dxf

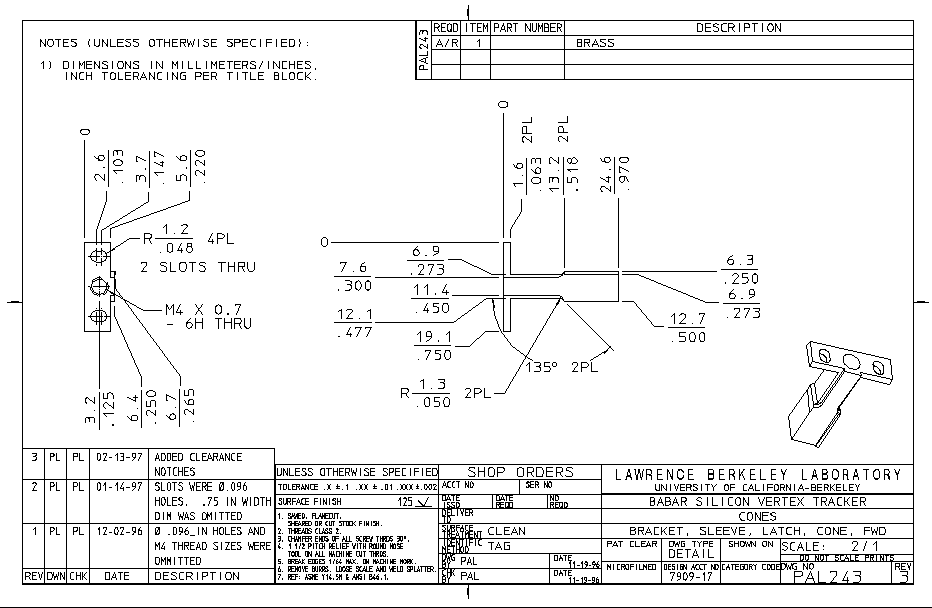

      PAL243  BRACKET, SLEEVE, LATCH, CONE, FWD --> gif dxf

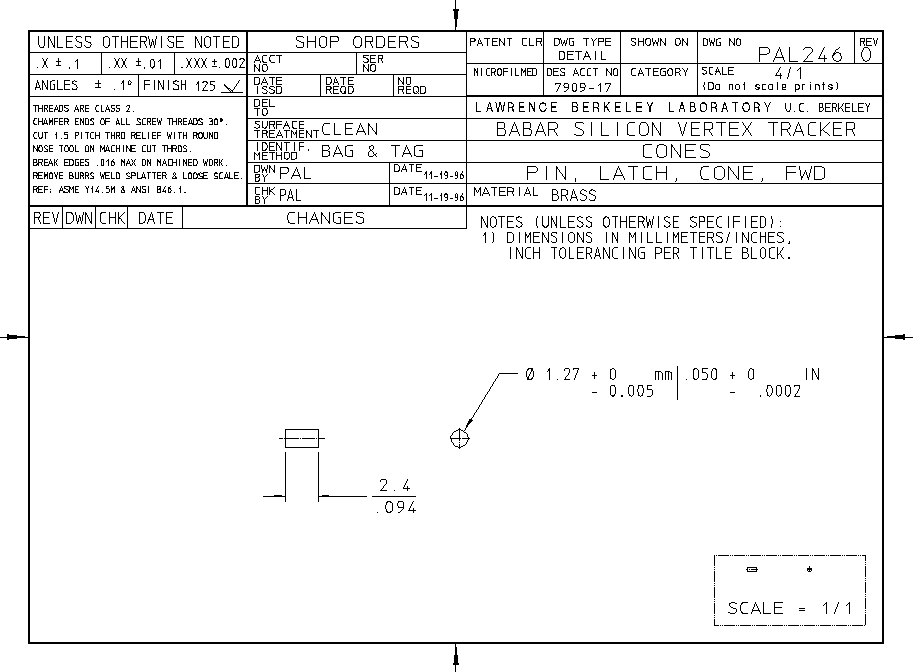

    PAL246  PIN, LATCH, CONE. FWD --> gif dxf

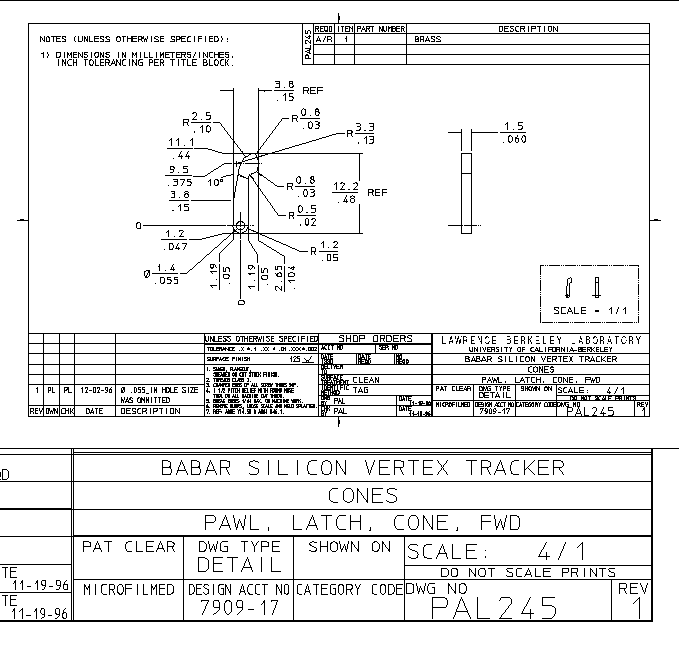

    PAL245  PAWL, LATCH, CONE, FWD --> gif dxf
NOTES:
  • Indented text lines of drawing lists report to next higher outdented line.
  • Drawings may be listed more than once.
  • Drawing files are the most current revision.
    •
