BACKWARD STANDOFF
("BRICK")
DRAWING LIST

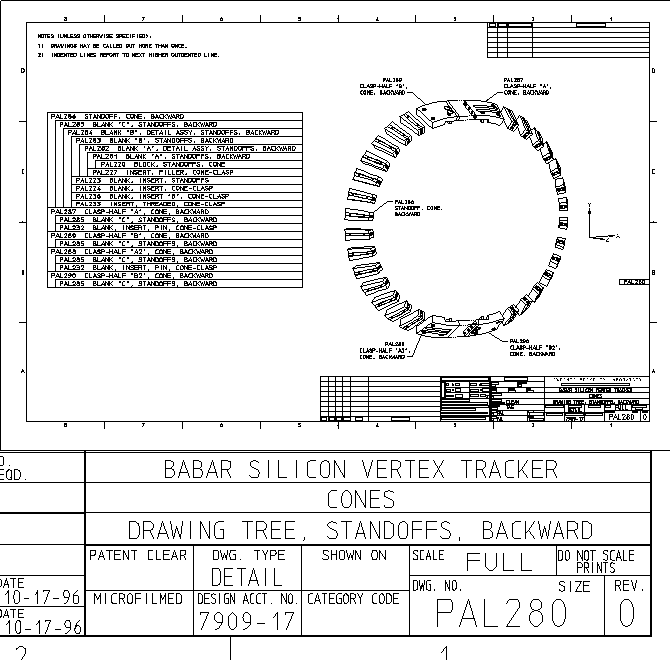

PAL280  DRAWING TREE, STANDOFFS, BACKWARD --> gif dxf

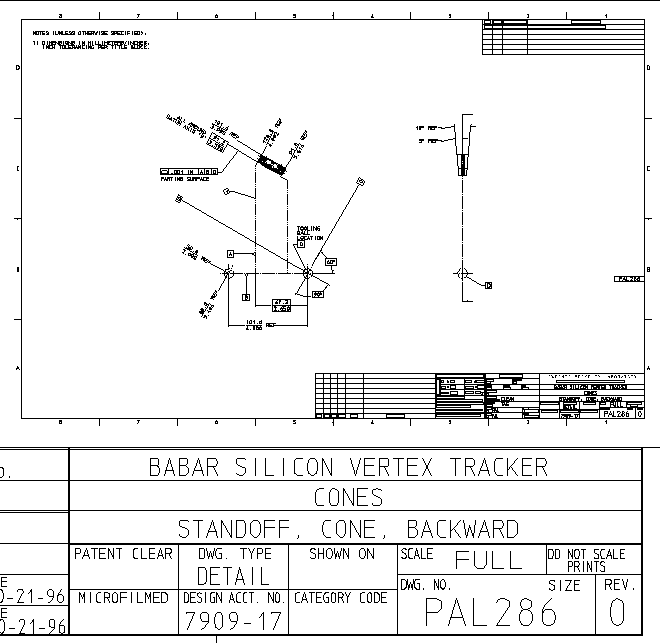

  PAL286  STANDOFF, CONE, BACKWARD --> gif dxf
    PAL285  BLANK "C", STANDOFFS, BACKWARD --> gif dxf

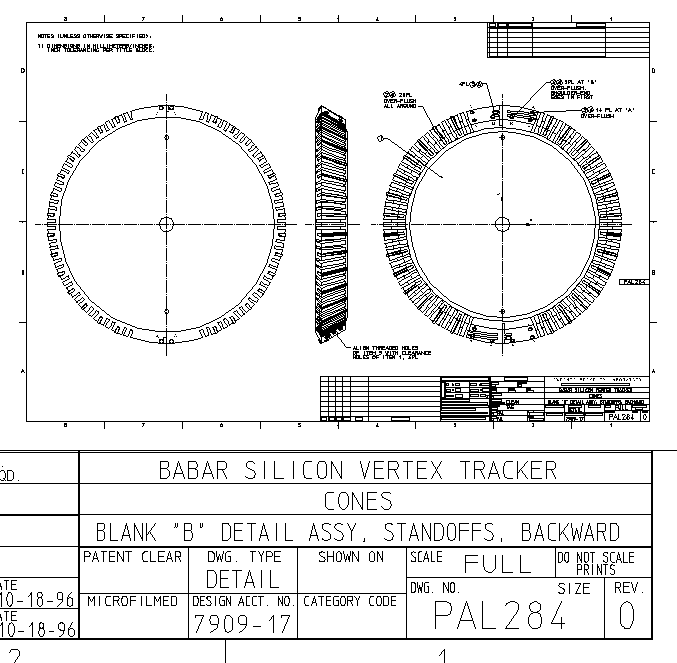

      PAL284  BLANK "B", DETAIL ASSY, STANDOFFS, BACKWARD --> gif dxf
        PAL283  BLANK "B", STANDOFFS, BACKWARD --> gif dxf

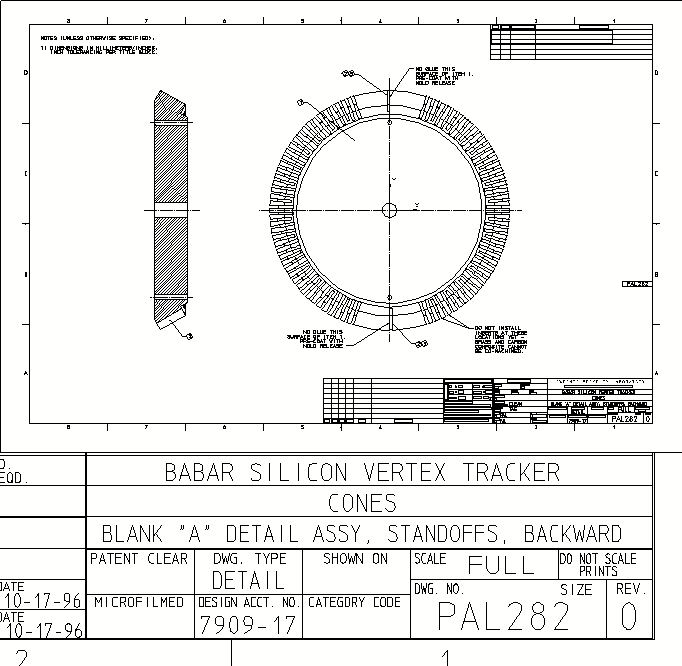

          PAL282  BLANK "A", DETAIL ASSY, STANDOFFS, BACKWARD --> gif dxf
            PAL281  BLANK "A", STANDOFFS, BACKWARD --> gif dxf

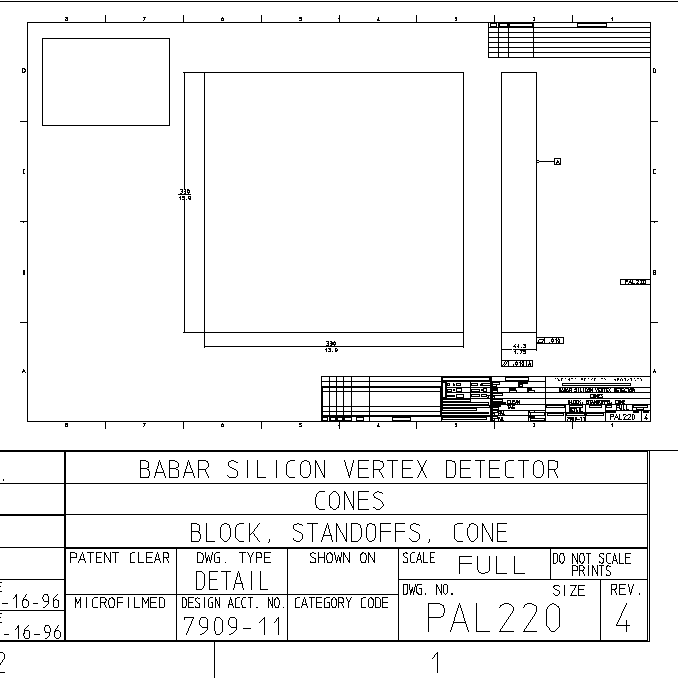

              PAL220  BLOCK, STANDOFFS, CONE --> gif dxf

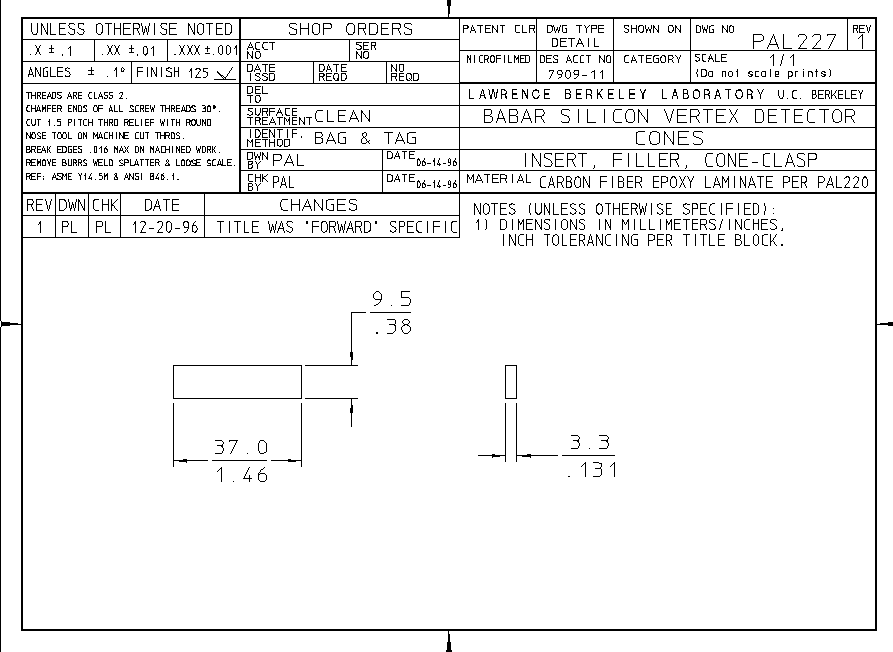

            PAL227  INSERT, FILLER, CONE-CLASP --> gif dxf

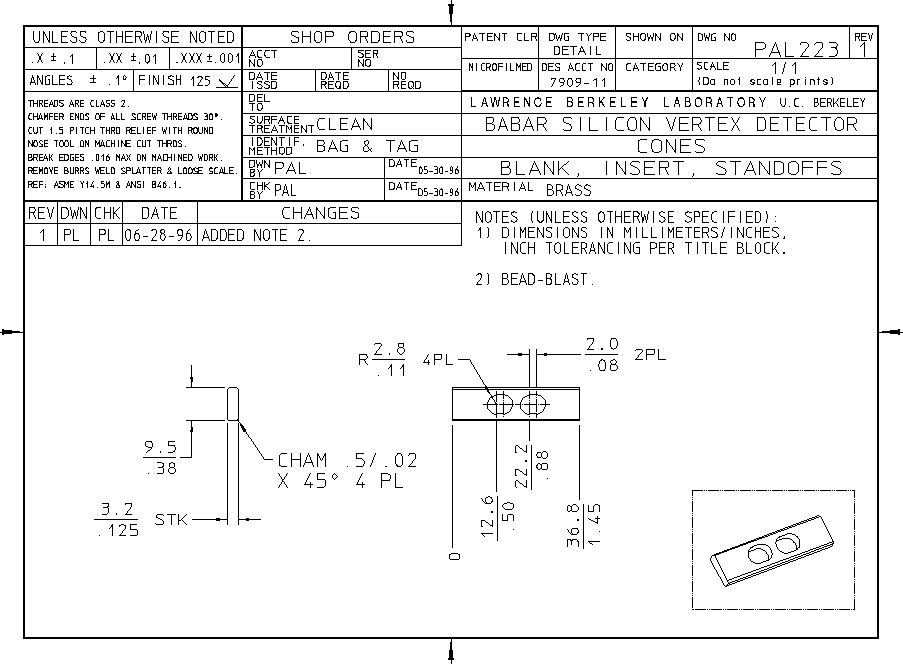

        PAL223  BLANK, INSERT, STANDOFFS --> gif dxf

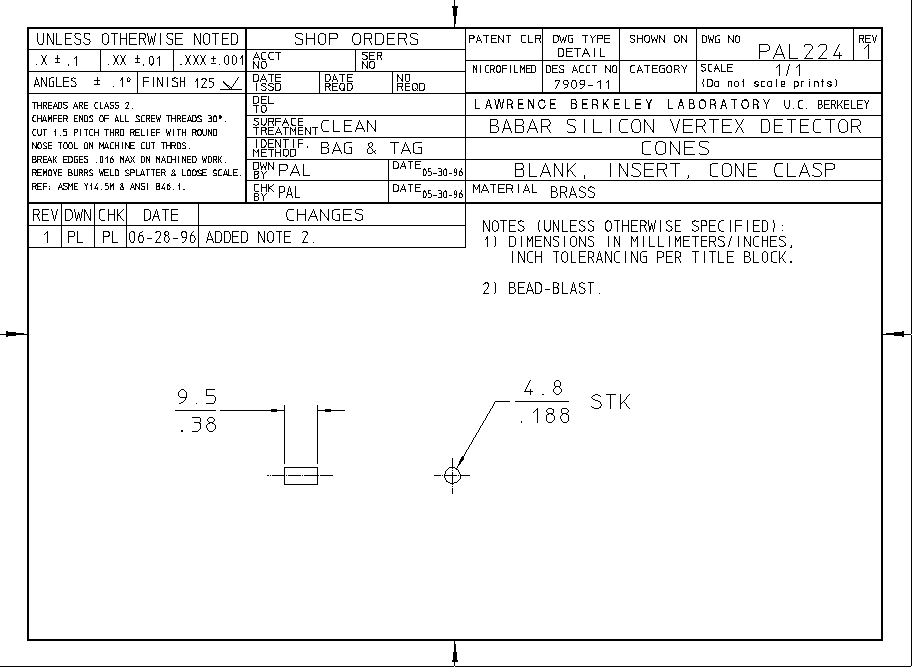

        PAL224  BLANK, INSERT, CONE-CLASP --> gif dxf

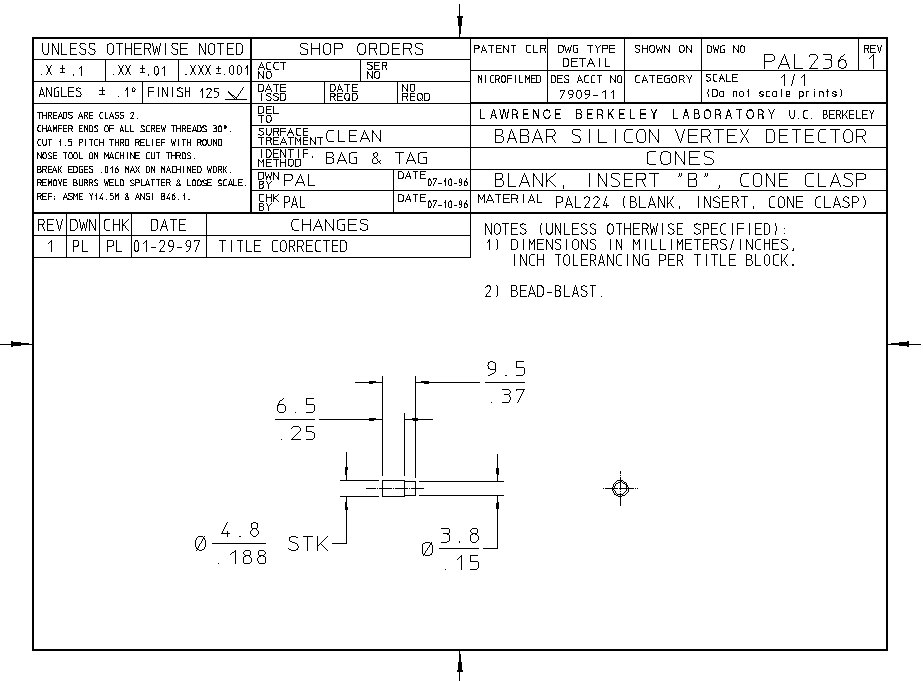

        PAL236  BLANK, INSERT "B", CONE-CLASP --> gif dxf

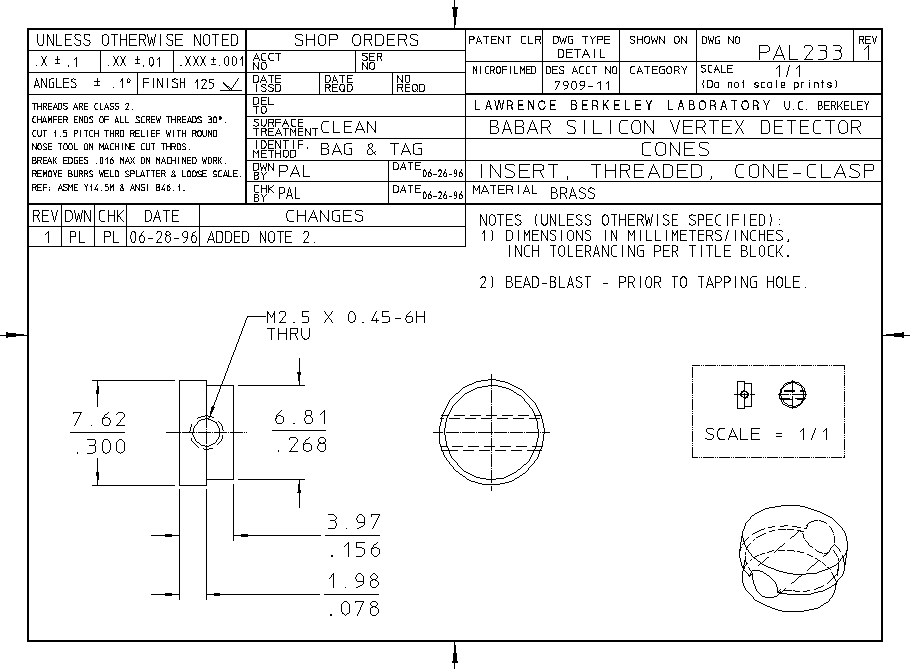

        PAL233  INSERT, THREADED, CONE-CLASP --> gif dxf

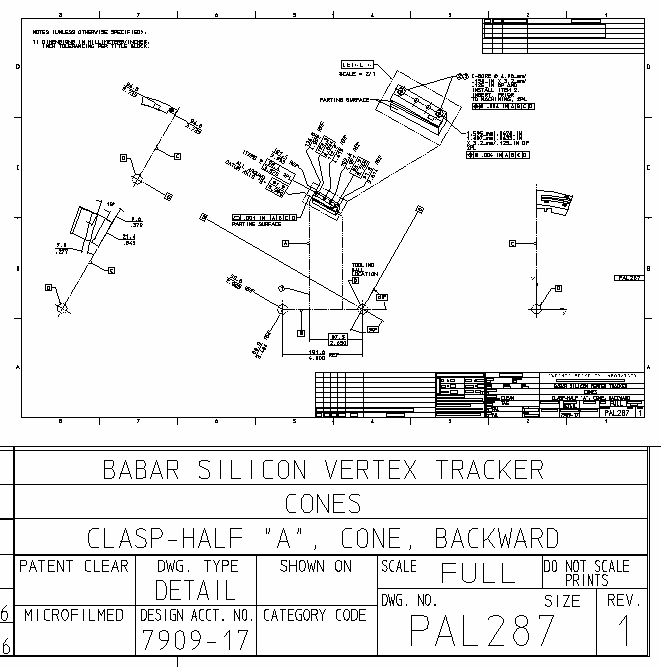

  PAL287  CLASP-HALF "A", CONE, BACKWARD --> gif dxf
    PAL285  BLANK "C", STANDOFFS, BACKWARD --> gif dxf

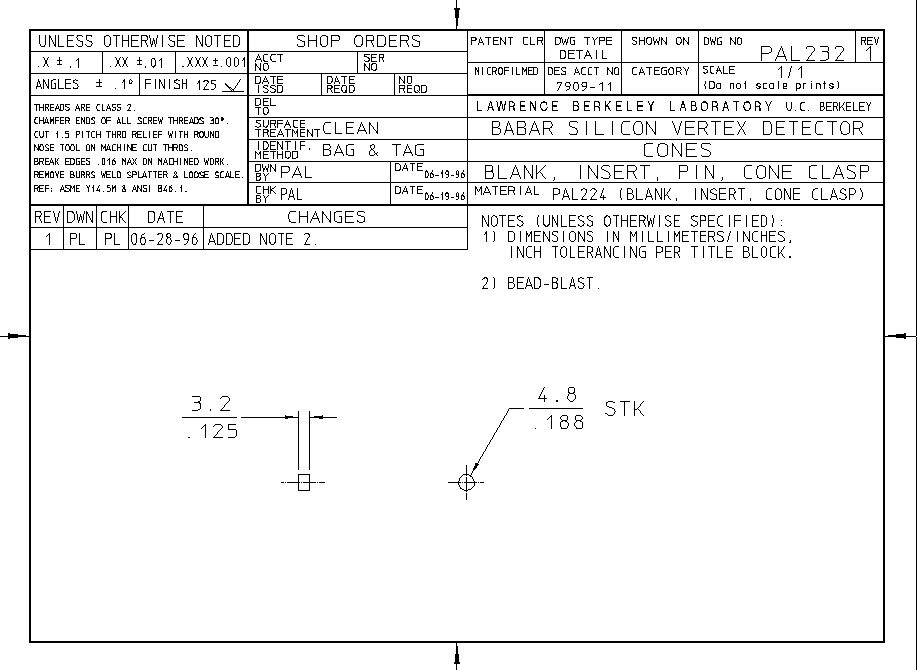

    PAL232  BLANK, INSERT, PIN, CONE-CLASP --> gif dxf

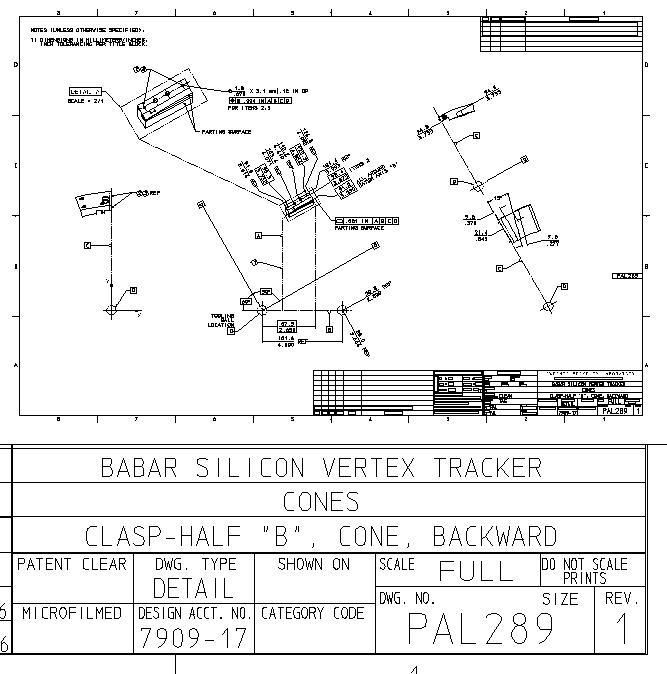

  PAL289  CLASP-HALF "B", CONE, BACKWARD --> gif dxf
    PAL285  BLANK "C", STANDOFFS, BACKWARD --> gif dxf

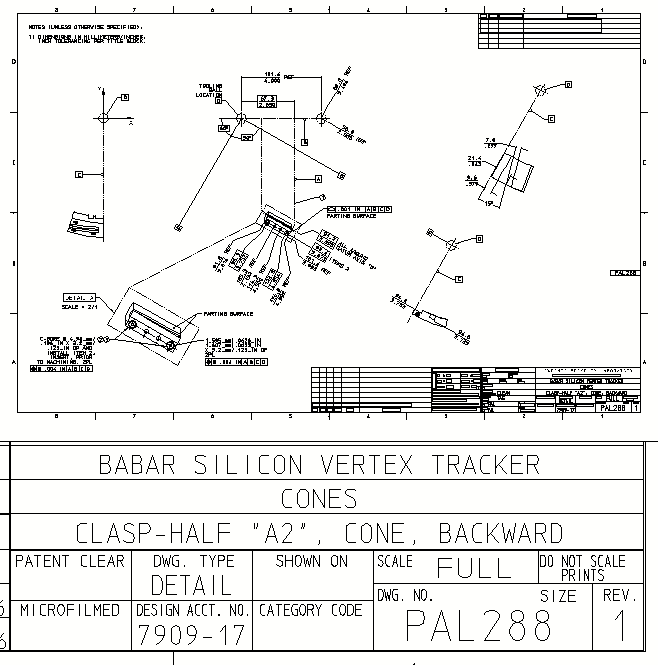

  PAL288  CLASP-HALF "A2", CONE, BACKWARD --> gif dxf
    PAL285  BLANK "C", STANDOFFS, BACKWARD --> gif dxf
    PAL232  BLANK, INSERT, PIN, CONE-CLASP --> gif dxf

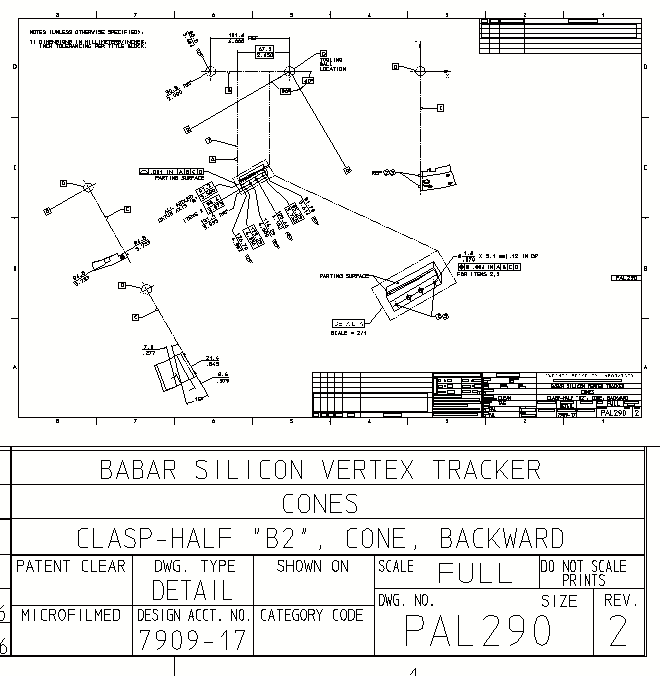

  PAL290  CLASP-HALF "B2", CONE, BACKWARD --> gif dxf
    PAL285  BLANK "C", STANDOFFS, BACKWARD --> gif dxf
NOTES:
  • Indented text lines of drawing lists report to next higher outdented line.
  • Drawings may be listed more than once.
  • Drawing files are the most current revision.
    •
