BACKWARD CONE LATCH
DRAWING LIST

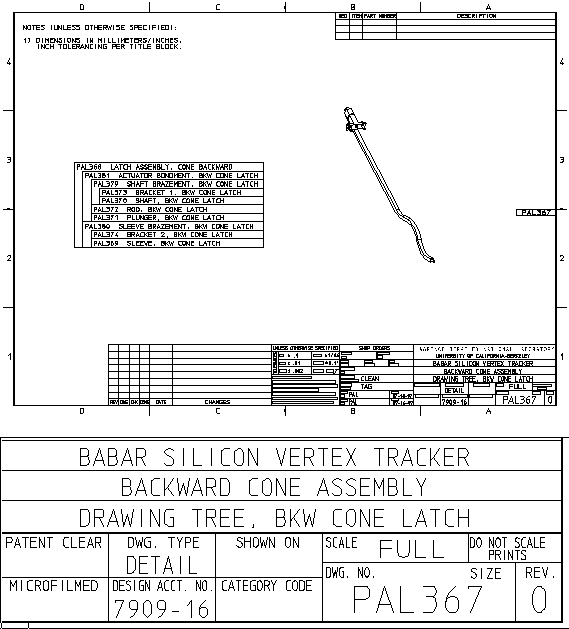

PAL367  DRAWING TREE, BACKWARD CONE LATCH --> gif dxf

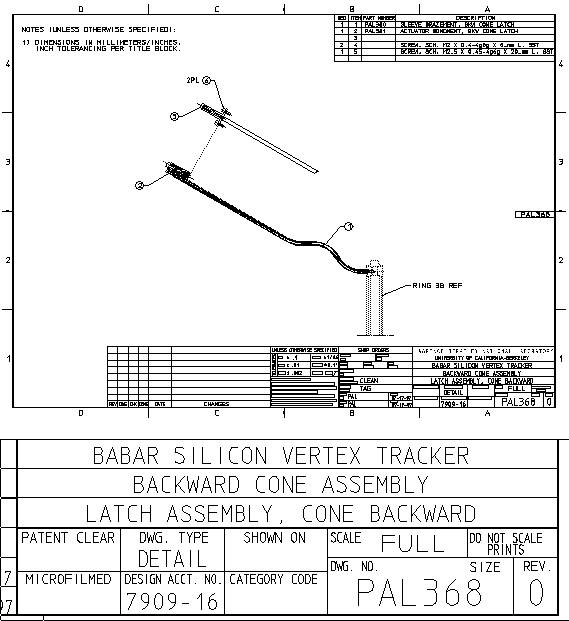

  PAL368  LATCH ASSEMBLY, CONE BACKWARD --> gif dxf

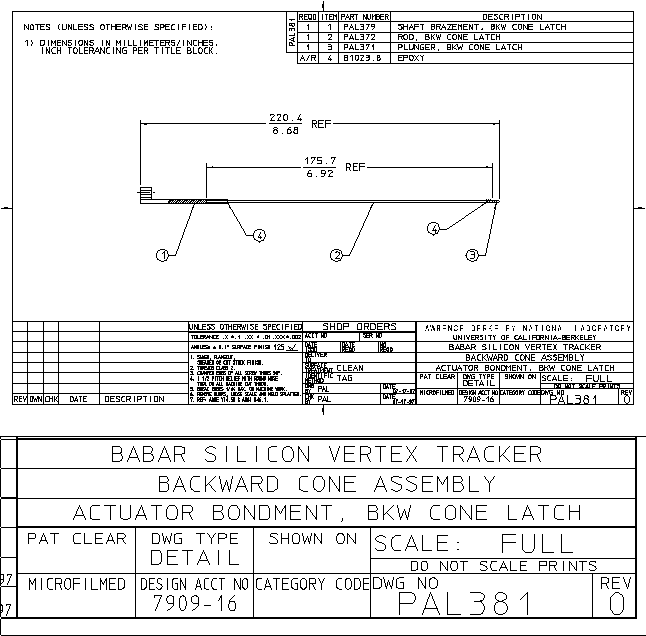

    PAL381  ACTUATOR BONDMENT, BKW CONE LATCH --> gif dxf

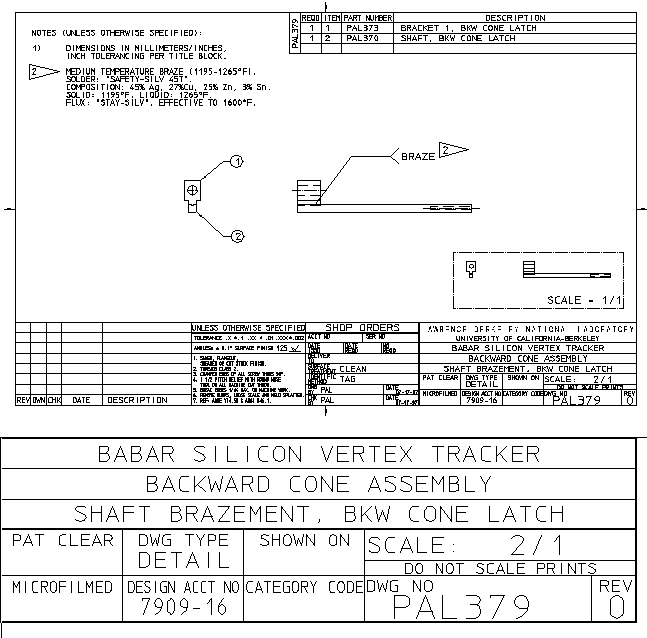

      PAL379  SHAFT BRAZEMENT, BKW CONE LATCH --> gif dxf

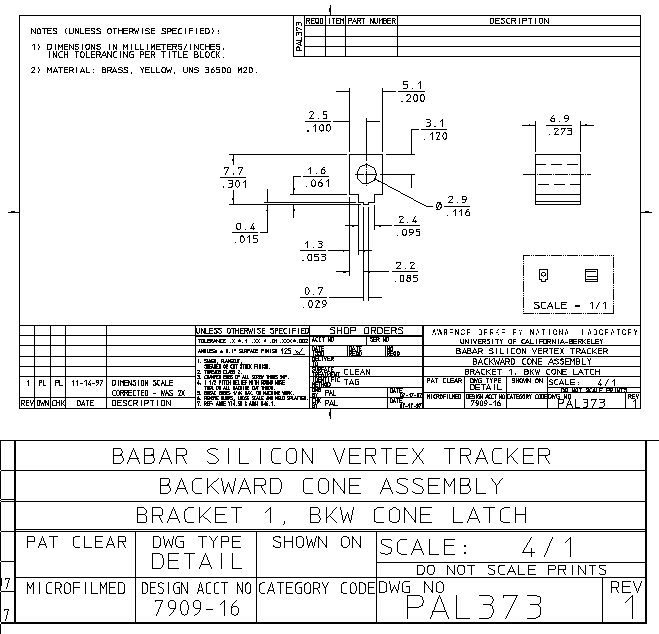

        PAL373  BRACKET 1, BKW CONE LATCH --> gif dxf

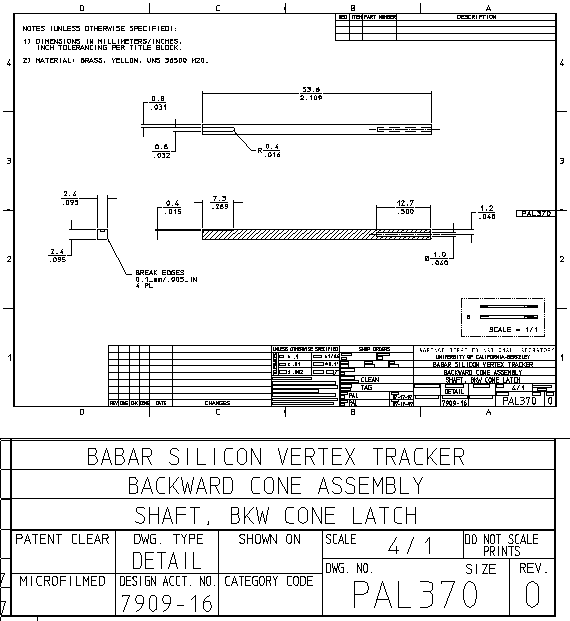

        PAL370  SHAFT, BKW CONE LATCH --> gif dxf

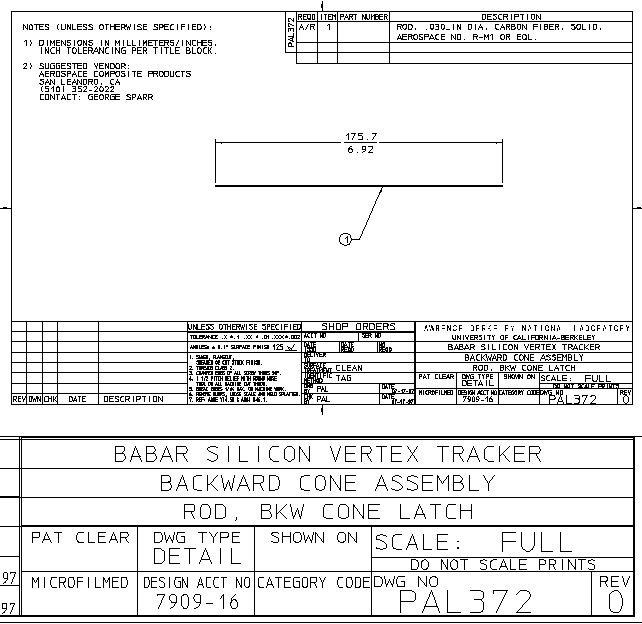

      PAL372  ROD, BKW CONE LATCH --> gif dxf

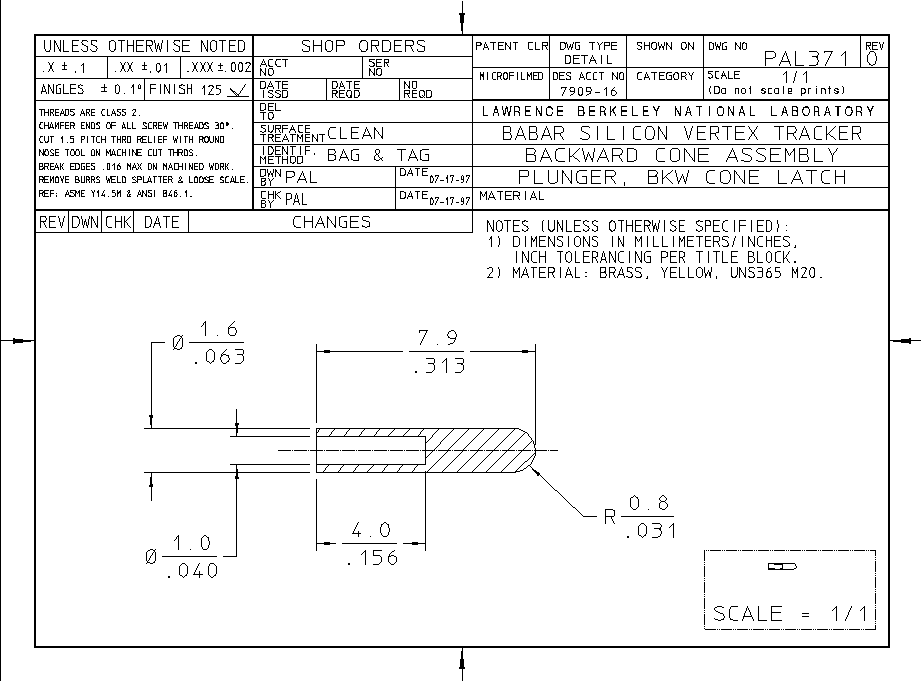

      PAL371  PLUNGER, BKW CONE LATCH --> gif dxf

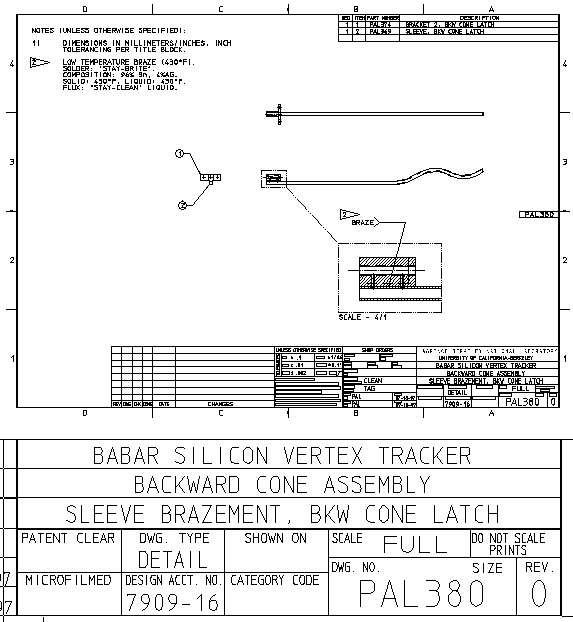

    PAL380  SLEEVE BRAZEMENT, BKW CONE LATCH --> gif dxf

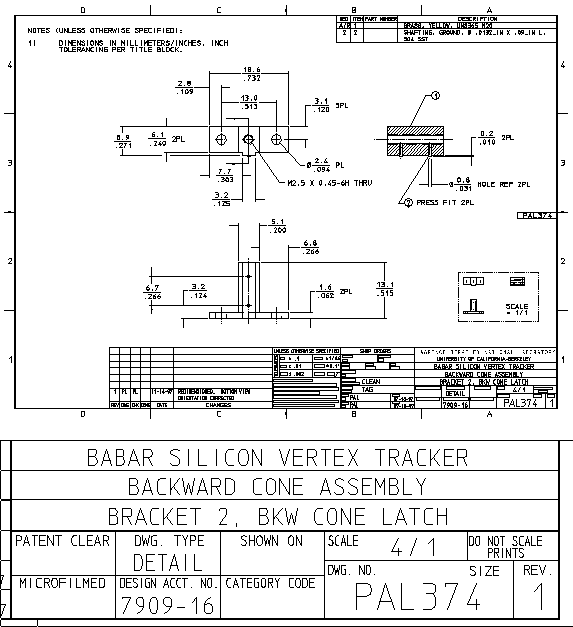

      PAL374  BRACKET 2, BKW CONE LATCH --> gif dxf

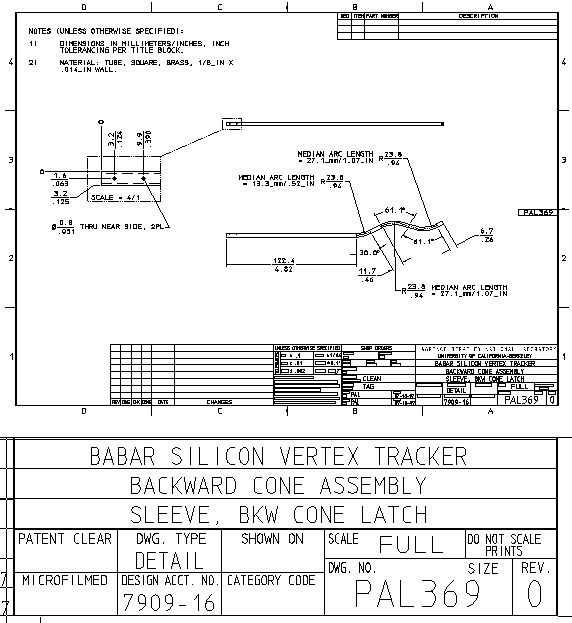

      PAL369  SLEEVE, BKW CONE LATCH --> gif dxf
NOTES:
  • Indented text lines of drawing lists report to next higher outdented line.
  • Drawings may be listed more than once.
  • Drawing files are the most current revision.
    •
