Editing Category Codes

Doug Fritz – June 10, 2004, the day before James is getting married!!

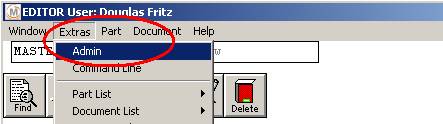

You must be a WorkManager Administrator!

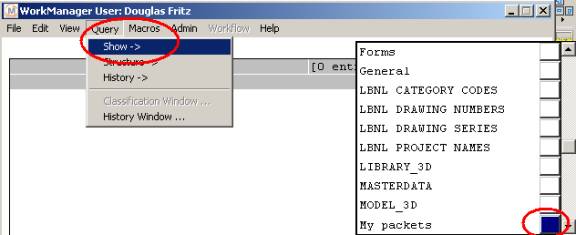

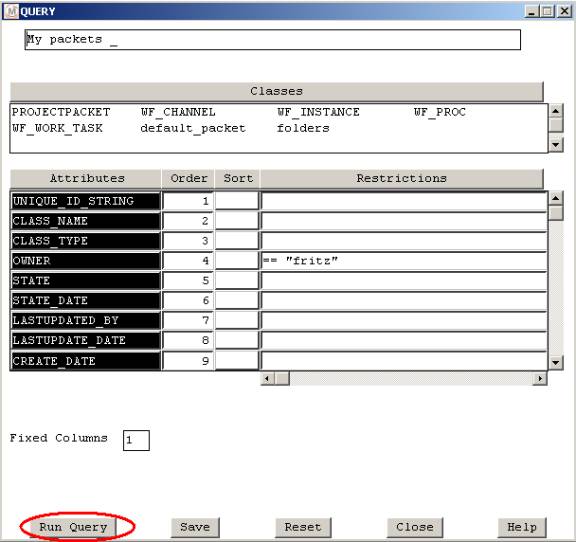

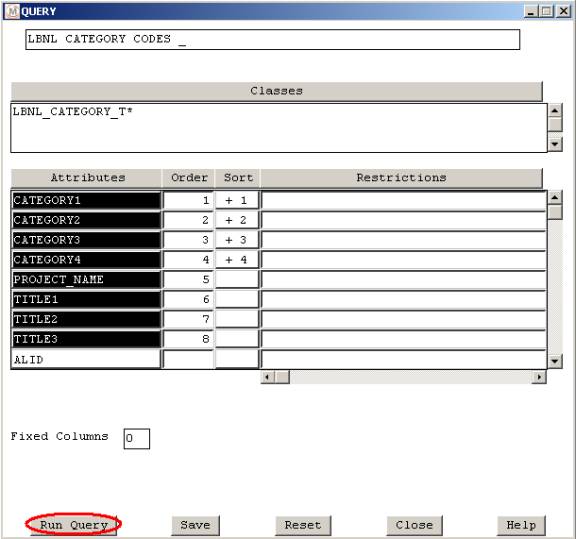

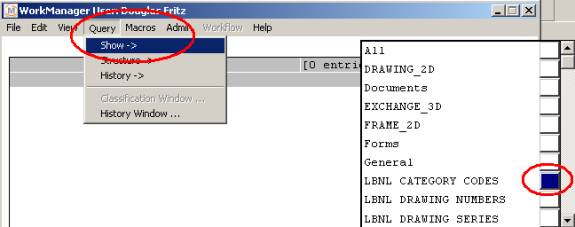

Next, perform a query to locate the category code(s) you want to edit.

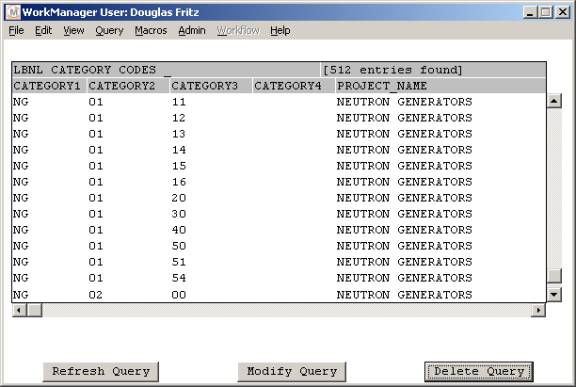

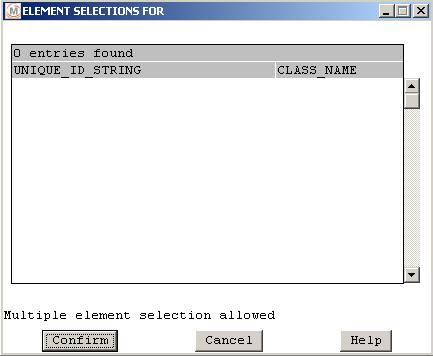

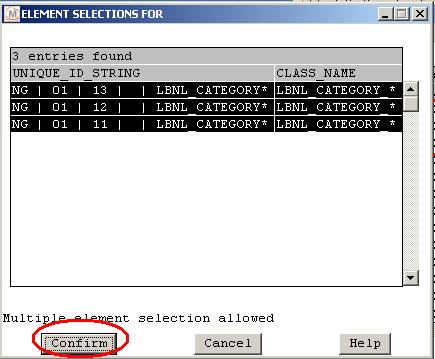

Click on the codes that you want to enter, this will place them in the “Element Selection For” window. (see below)

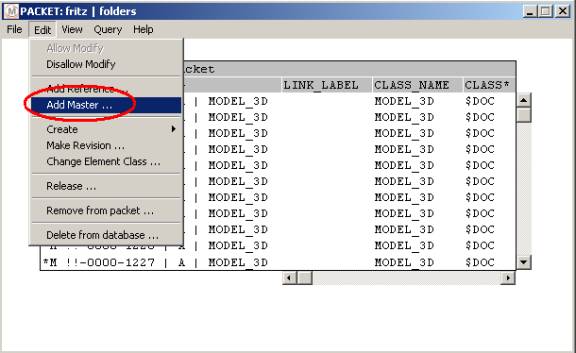

This will put these objects in your folder so that they can now be edited.

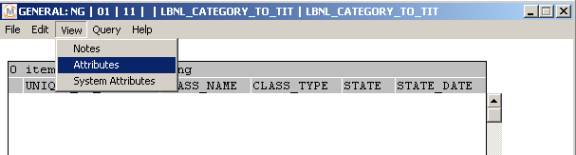

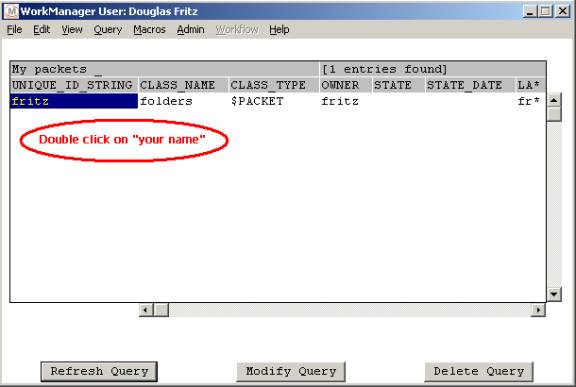

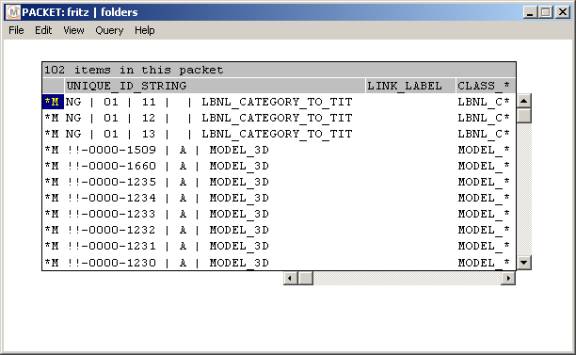

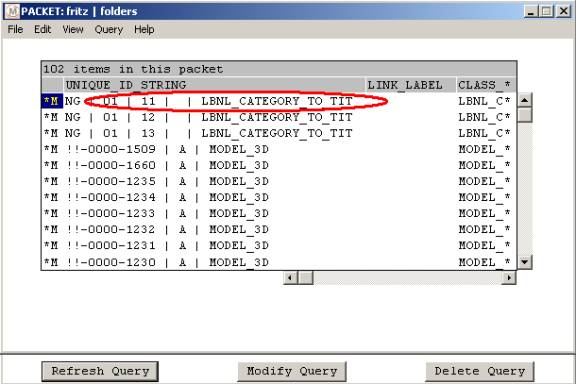

Double click on the object to be edited.

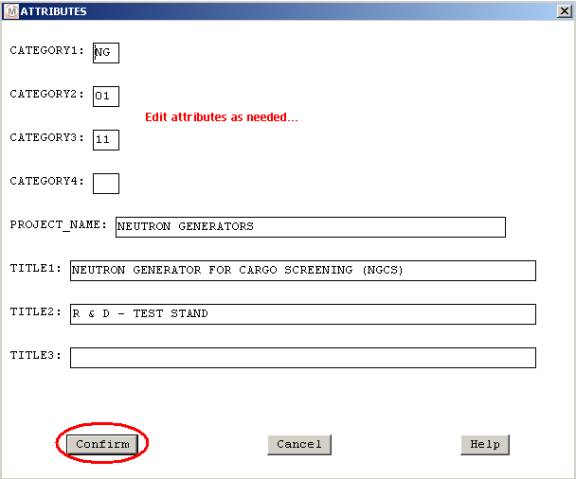

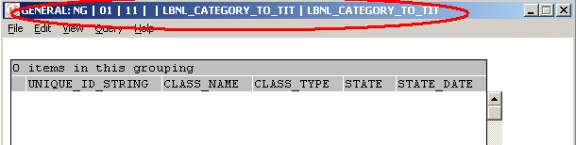

Edit the attributes as needed and confirm

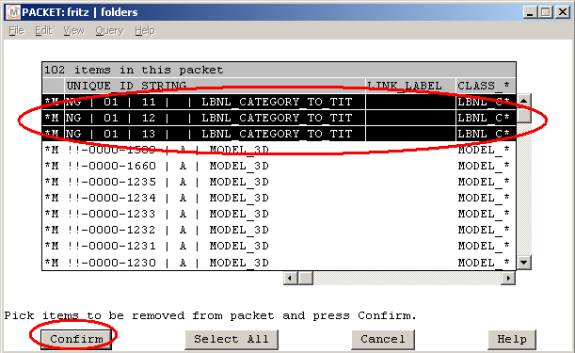

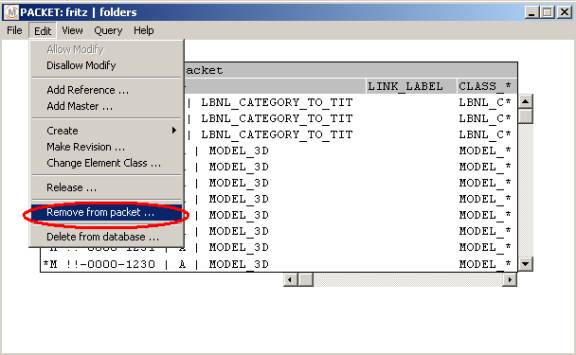

Finally you must remove the object from your folder.

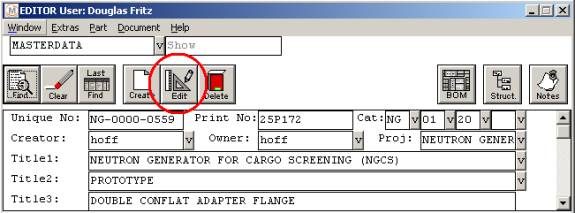

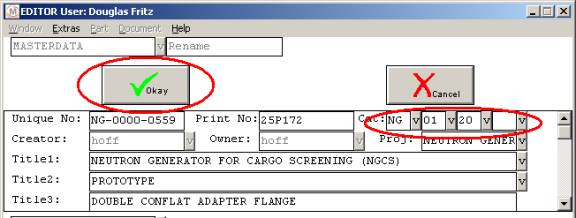

Note: In order to see these changes on you drawing you will need to edit the master data for the drawing.

Reset the category codes and the click OK.

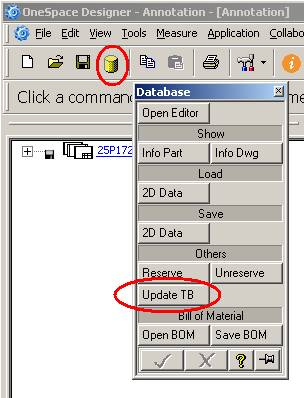

Finally update the Title Block in OSD
